WN Dumper 2001

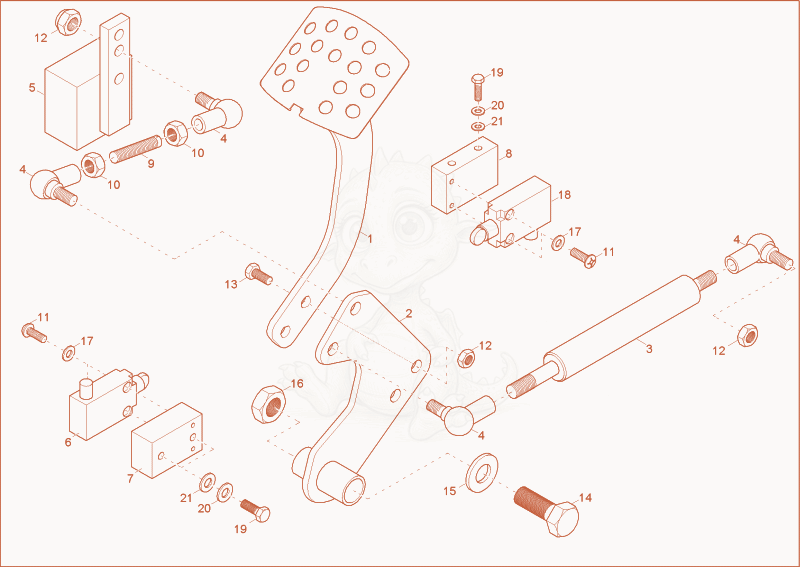

2001 FOOT BRAKE Diagram

Exploded parts diagram of the FOOT BRAKE of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000074928
    $60.66
    STEP PLATE - 1000074928×1
  • 21000068347Not stocked
    brake pedal×1
  • 31000001847Not stocked
    gas strut×1
  • 41000015635
    $20.00
    BALL AND SOCKET - 1000015635×4
  • 51000068384Not stocked
    swivel restrictor×1
  • 61000003238
    $60.31
    SWITCH - 1000003238×1
  • 71000068346Not stocked
    plate×1
  • 81000107049Not stocked
    plate×1
  • 91000082534
    $1.36
    thread pin - 1000082534×1
  • 101000015427Not stocked
    hexagon nut×2
  • 111000085552
    $1.18
    ovalhead screw - 1000085552×4
  • 121000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×4
  • 131000015343Not stocked
    hex screw×2
  • 141000082284
    $2.51
    hex screw - 1000082284×1
  • 151000021001
    $0.89
    WASHER - 1000021001×1
  • 161000020788Not stocked
    hexagon nut×1
  • 171000085627
    $0.65
    SPRING WASHER - 1000085627×4
  • 181000003238
    $60.31
    SWITCH - 1000003238×1
  • 191000085382
    $0.70
    HEX SCREW - 1000085382×4
  • 201000015444Not stocked
    spring washer×4
  • 211000015430Not stocked
    washer×4
