WN Dumper 2001

2001 WIRE HARNESS (OPTION SLE) Diagram

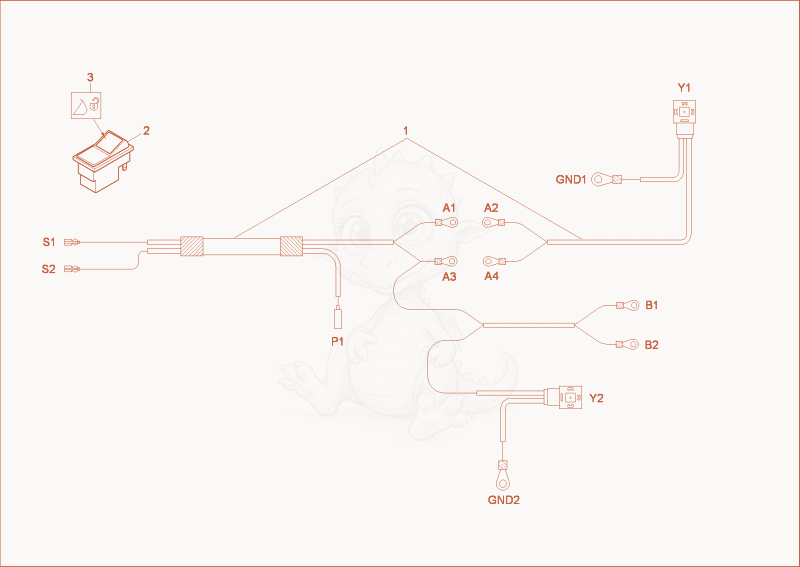

Exploded parts diagram of the WIRE HARNESS (OPTION SLE) of a Wacker Neuson 2001, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000167035Not stocked
    wiring harness×1
  • 21000081956
    $19.93
    tilt switch - 1000081956×1
  • 31000163567
    $9.65
    symbol - 1000163567×1
  • A11000101271
    $1.91
    cable lug - 1000101271×1
  • A21000101271
    $1.91
    cable lug - 1000101271×1
  • A31000101271
    $1.91
    cable lug - 1000101271×1
  • A41000101271
    $1.91
    cable lug - 1000101271×1
  • B11000101271
    $1.91
    cable lug - 1000101271×1
  • B21000101271
    $1.91
    cable lug - 1000101271×1
  • GND11000107754
    $2.77
    cable lug - 1000107754×1
  • GND21000107754
    $2.77
    cable lug - 1000107754×1
  • P11000089776
    $1.67
    PLUG SLEEVE - 1000089776×1
  • S11000089776
    $1.67
    PLUG SLEEVE - 1000089776×1
  • S21000089776
    $1.67
    PLUG SLEEVE - 1000089776×1
  • Y11000002986Not stocked
    valve plug×1
  • Y21000002986Not stocked
    valve plug×1
