Excavator 3503

3503RD cooling system Diagram

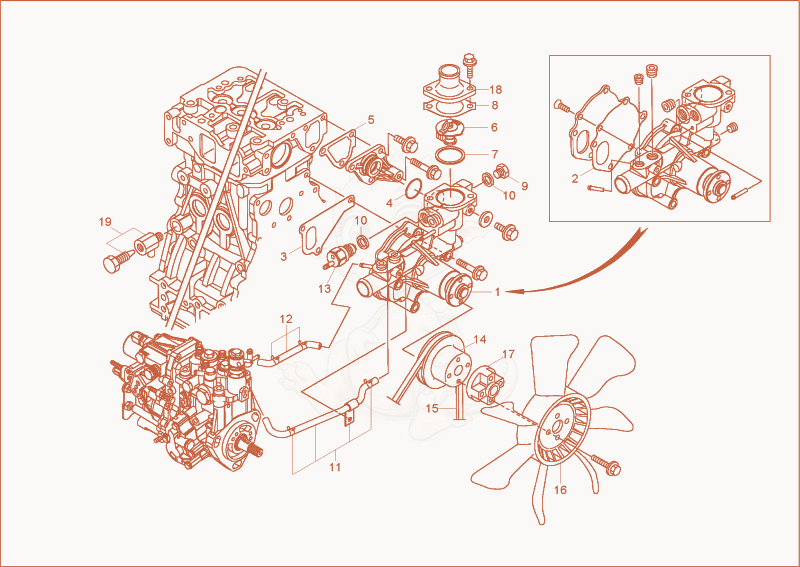

Exploded parts diagram of the cooling system of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000104767
    $1,216.53
    Waterpump 1000104767×1
  • 21000104768
    $18.55
    ENGINE GASKET - 1000104768×1
  • 31000098591
    $9.77
    Seal - 1000098591×1
  • 41000099345
    $4.98
    O-RING - 1000099345×1
  • 51000085177
    $3.31
    GASKET THERMOSTAT - 1000085177×1
  • 61000012549
    $76.23
    X-1000115256 THERMOSTAT - 1000012549×1
  • 71000012550Not stocked
    gasket thermostat×1
  • 81000012548Not stocked
    gasket thermostat×1
  • 91000063425Not stocked
    lock screw×1
  • 101000002929Not stocked
    seal ring×2
  • 111000107848
    $113.92
    pipe line - 1000107848×1
  • 121000107852
    $53.15
    pipe line - 1000107852×1
  • 131000003892Not stocked
    temperature switch×1
  • 141000035854
    $19.13
    Belt pulley - 1000035854×1
  • 151000098688
    $21.49
    V-belt R-1000005136 - 1000098688×1
  • 161000103743
    $104.64
    fan - 1000103743×1
  • 171000085211
    $81.54
    FAN SPACER - 1000085211×1
  • 181000073611
    $84.47
    THERMOSTAT HOUSING - 1000073611×1
  • 191000074223
    $50.71
    drain valve - 1000074223×1
