Excavator 3503

3503RD CONTROL VALVE 1 Diagram

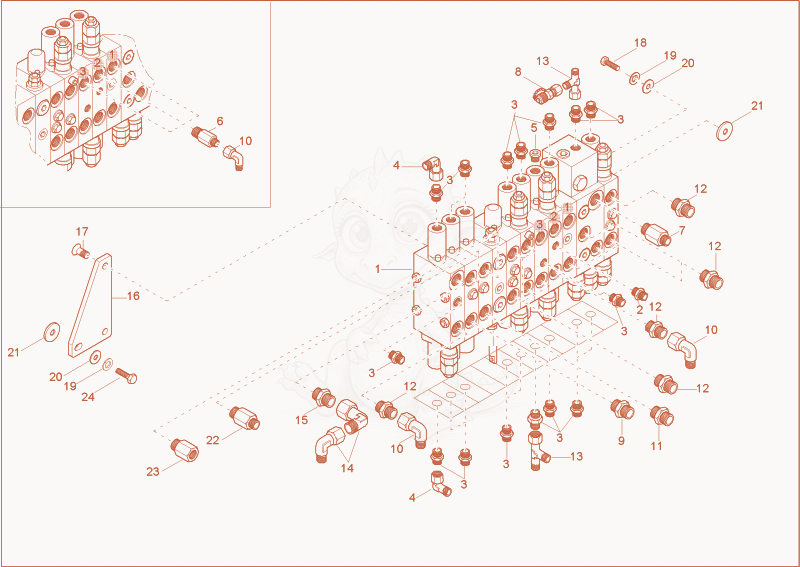

Exploded parts diagram of the CONTROL VALVE 1 of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000071346Not stocked
    valve block×1
  • 21000082968
    $30.72
    GE08LR1/8OROMDA3C - 1000082968×1
  • 31000082963
    $3.67
    GE08LR1/4OROMDA3C - 1000082963×17
  • 41000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 51000022438Not stocked
    screw joint×1
  • 61000069387Not stocked
    extension×3
  • 71000069308Not stocked
    connection piece×1
  • 81000000575Not stocked
    minimess point×1
  • 91000082969
    $4.07
    GE12LR3/8OROMDA3C - 1000082969×1
  • 101000015512Not stocked
    screw joint×5
  • 111000083024
    $4.01
    GE10LR3/8OROMDA3C - 1000083024×1
  • 121000083023
    $8.35
    GE15LR3/8OROMDA3C - 1000083023×12
  • 131000015515Not stocked
    screw joint×2
  • 141000020261
    $17.85
    EW22LOMD - 1000020261×2
  • 151000082976
    $21.23
    GE22LR1/2OROMDA3C - 1000082976×1
  • 161000093489
    $47.11
    INTERMEDIATE PLATE - 1000093489×1
  • 171000015397Not stocked
    countersunk screw×2
  • 181000015364Not stocked
    hex screw×2
  • 191000015438Not stocked
    lock washer×4
  • 201000015434Not stocked
    washer×3
  • 211000069388Not stocked
    cork disc×3
  • 221000069309Not stocked
    connection piece×1
  • 231000069310Not stocked
    connection piece×1
  • 241000015346Not stocked
    hex screw×1
