Excavator 3503

3503RD wiring harness engine Diagram

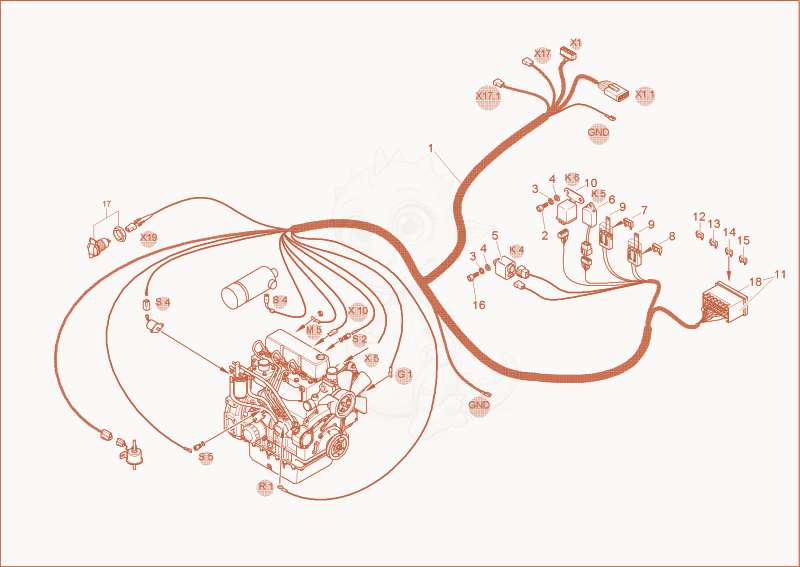

Exploded parts diagram of the wiring harness engine of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000112338
    $5,612.57
    Wiringharnessengine 1000112338×1
  • 21000085382
    $0.70
    HEX SCREW - 1000085382×5
  • 31000015436Not stocked
    lock washer×6
  • 41000015430Not stocked
    washer×6
  • 51000069105Not stocked
    start relay×1
  • 61000005108Not stocked
    time relay×1
  • 71000100193
    $3.95
    LOCK - 1000100193×1
  • 81000015302
    $3.50
    fuse - 1000015302×1
  • 91000027186
    $10.05
    Bracket - 1000027186×2
  • 101000012332Not stocked
    relay cutoff solenoid×1
  • 111000001534Not stocked
    fuse box×1
  • 121000095374
    $0.85
    fuse - 1000095374×1
  • 131000085682
    $0.43
    fuse - 1000085682×1
  • 141000085683
    $0.55
    FUSE - 1000085683×1
  • 151000081695
    $0.52
    FUSE - 1000081695×1
  • 161000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
  • 171000002902Not stocked
    socket×1
  • 181000099373
    $35.35
    COVER FUSE BOX - 1000099373×1
  • 191000012334Not stocked
    time relay×1
