Excavator 3503

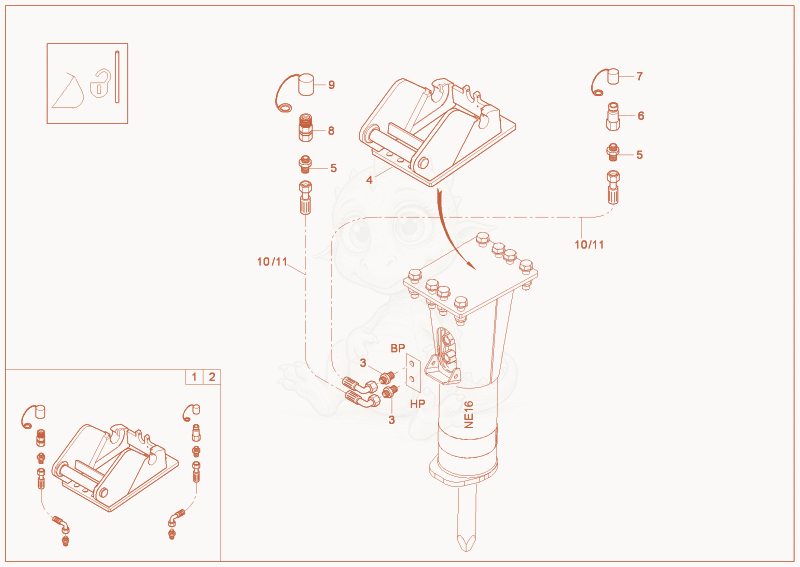

3503RD KIT HYDR. BREAKER Diagram

Exploded parts diagram of the KIT HYDR. BREAKER of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000157335Not stocked
    KIT HYDR. BREAKER 35-3703,NE16×1
  • 21000157336Not stocked
    KIT HYDR. BREAKER 35-3703,NE16×1
  • 31000085117
    $33.66
    GE15L7/8UNFOMDA3C - 1000085117×2
  • 41000153413
    $3,638.40
    Hammersupport 1000153413×1
  • 51000015494Not stocked
    screw joint×2
  • 61000109377
    $36.52
    Quick lock coupling 1/2'' Flat Face - 1000109377×1
  • 71000109416
    $8.43
    Protection cap - 1000109416×1
  • 81000109378
    $54.82
    Quick lock coupling 1/2" Flat Face - 1000109378×1
  • 91000109417
    $10.12
    Protection cap - 1000109417×1
  • 101000156623
    $98.74
    SLHYDR 2SC 13 PN15 90 PN15 0 L1400 F0 - 1000156623×2
  • 111000156624Not stocked
    Hose×2
