Excavator 3503

3503RD heating Diagram

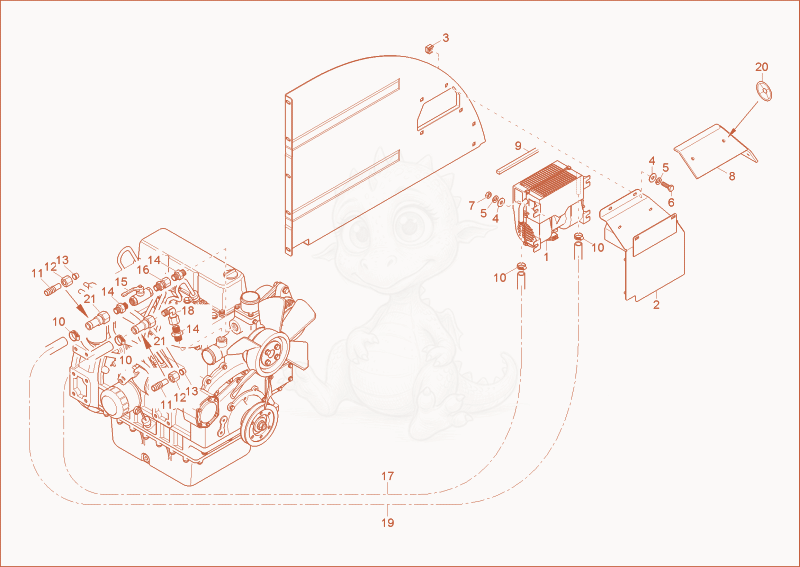

Exploded parts diagram of the heating of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000262313
    $573.90
    HEATING - 1000262313×1
  • 21000142362
    $194.76
    CONSOLE HEATER - 1000142362×1
  • 31000015425Not stocked
    cage nut×4
  • 41000013027Not stocked
    washer×8
  • 51000015437Not stocked
    lock washer×8
  • 61000019136Not stocked
    hex screw×4
  • 71000013021Not stocked
    hexagon nut×4
  • 81000143471
    $31.71
    INSULATING MAT - 1000143471×1
  • 91000098196
    $0.67
    seal strap foam 10x15 - 1000098196×7
  • 101000267810
    $4.29
    hose clamp - 1000267810×4
  • 111000016293
    $22.33
    hose sleeve - 1000016293×2
  • 121000015482
    $0.85
    M12L ST A3C - 1000015482×2
  • 131000015481Not stocked
    union nut×2
  • 141000082875
    $6.68
    GE12LR3/8A3CX GEK. GEWINDE - 1000082875×3
  • 151000021495Not stocked
    ball valve×1
  • 161000015543Not stocked
    screw joint×1
  • 171000098192Not stocked
    hose×3
  • 181000000573Not stocked
    screw joint×1
  • 191000098192Not stocked
    hose×3
  • 201000117022
    $1.09
    insulating washer - 1000117022×4
  • 211000267951
    $22.17
    hose sleeve - 1000267951×2
