3503RD fuel tank Diagram

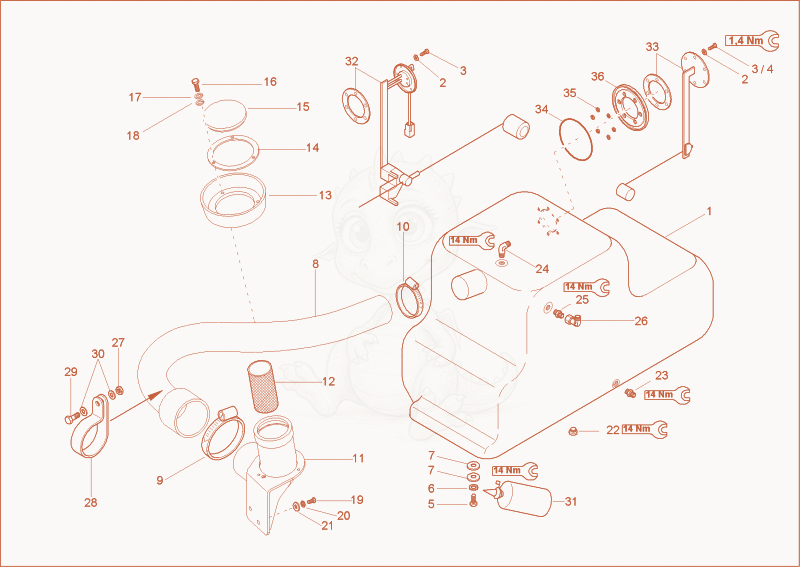

Exploded parts diagram of the fuel tank of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000071210Not stocked
    fuel tank×1
  • washer 4,3 DIN125 - 1000094961×6
  • hex screw - 1000085375×6
  • hex screw - 1000085376×6
  • Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 61000015438Not stocked
    lock washer×4
  • Washer 10,5 St A2C - 1000092303×8
  • 81000116697
    $188.25
    diesel refill hose - 1000116697×1
  • 91000069097Not stocked
    hose clamp×1
  • 101000083310
    $2.41
    hose clamp 50-70mm - 1000083310×1
  • 111000116692Not stocked
    tankfilling×1
  • 121000002983
    $27.64
    screen - 1000002983×1
  • 131000068721Not stocked
    diesel overflow×1
  • 141000068722Not stocked
    fastenring×1
  • 151000068814Not stocked
    filler cap×1
  • 161000085452
    $0.70
    allen screw M5x20-8.8 A2C DIN912 - 1000085452×3
  • 171000082608
    $0.06
    lock washer - 1000082608×3
  • 181000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×3
  • 191000019136Not stocked
    hex screw×2
  • 201000015437Not stocked
    lock washer×2
  • 211000015431Not stocked
    washer×2
  • 221000439458Not stocked
    screw joint×1
  • 231000082988
    $4.31
    GE08LR3/8OROMDA3C - 1000082988×1
  • 241000015503Not stocked
    screw joint×1
  • 251000015488Not stocked
    screw joint×1
  • 261000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 271000015413Not stocked
    hexagon nut×1
  • 281000083307
    $5.30
    HOSE CLAMP - 1000083307×1
  • 291000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 301000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×2
  • 311000081661
    $129.22
    SCREW LOCKING - 1000081661×1
  • 321000066242Not stocked
    fuel transmitter×1
  • 331000130434
    $137.17
    fuel transmitter - 1000130434×1
  • 341000095046
    $0.93
    O-RING - 1000095046×1
  • 351000151450Not stocked
    o-ring×6
  • 361000141569Not stocked
    seal plate×1
