Excavator 3503

3503RD exhaust Diagram

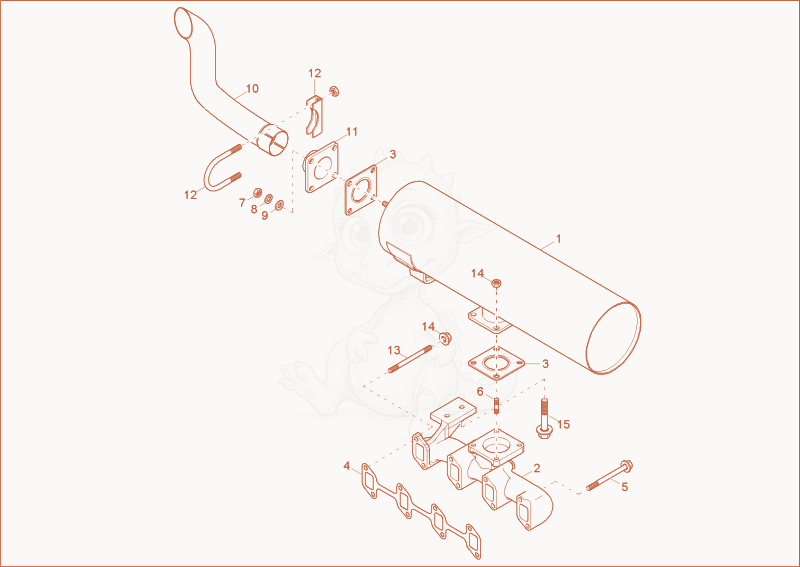

Exploded parts diagram of the exhaust of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000185635
    $1,093.86
    Exhaust 1000185635×1
  • 21000130227
    $584.61
    Exhaustmanifold 1000130227×1
  • 31000012539Not stocked
    exhaust gasket×2
  • 41000071072Not stocked
    exh.manifold gasket×1
  • 51000107716
    $13.33
    SCREW - 1000107716×6
  • 61000098729
    $3.85
    Stud bolt - 1000098729×4
  • 71000013021Not stocked
    hexagon nut×4
  • 81000015437Not stocked
    lock washer×4
  • 91000015431Not stocked
    washer×4
  • 101000109366
    $226.15
    exhaust pipe - 1000109366×1
  • 111000109367Not stocked
    muffler support×1
  • 121000114100Not stocked
    clamp×1
  • 131000063339Not stocked
    stud bolt×2
  • 141000098728
    $2.07
    Hexagon nut - 1000098728×6
  • 151000085196
    $3.70
    HEX SCREW - 1000085196×2
