Excavator 3503

3503RD crankshaft, piston Diagram

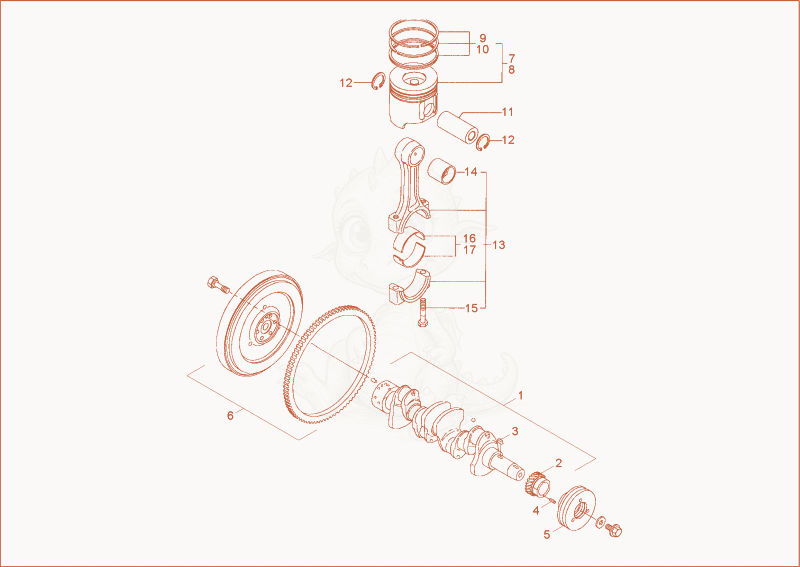

Exploded parts diagram of the crankshaft, piston of a Wacker Neuson 3503RD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000124275Not stocked
    crank shaft×1
  • 21000124276Not stocked
    gear×1
  • 31000107537
    $2.10
    fitting key - 1000107537×1
  • 41000107723
    $1.95
    spring pin - 1000107723×1
  • 51000106279
    $413.26
    BELT PULLEY - 1000106279×1
  • 61000130232
    $1,487.09
    Flywheel 1000130232×1
  • 71000107729
    $184.27
    PISTON - 1000107729×4
  • 81000124279
    $312.94
    PISTON - 1000124279×4
  • 91000107727
    $119.61
    SET OF BACKUP RINGS - 1000107727×4
  • 101000124278
    $126.05
    SET OF BACKUP RINGS - 1000124278×4
  • 111000107730
    $28.61
    PIN - 1000107730×4
  • 121000107728
    $1.96
    lock ING - 1000107728×8
  • 131000085162
    $413.88
    connecting rod - 1000085162×4
  • 141000107731
    $17.48
    BUSHING - 1000107731×4
  • 151000035777Not stocked
    conn.rod screw×8
  • 161000107732
    $44.98
    CONN.ROD BEARING - 1000107732×4
  • 171000099236
    $30.07
    CONN.ROD BEARING - 1000099236×4
