5001RDV

5001RDV 2 bowl gripper Diagram

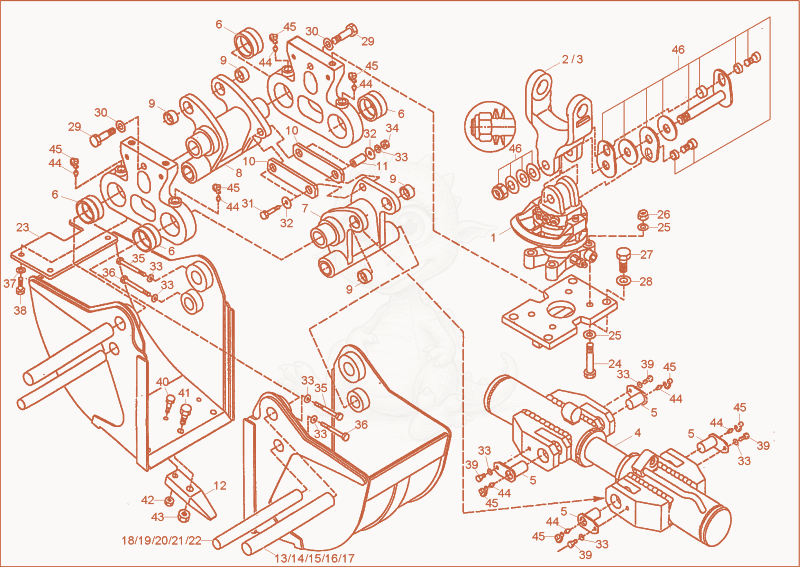

Exploded parts diagram of the 2 bowl gripper of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000070463Not stocked
    rotator×1
  • 21000070465Not stocked
    gripper support×1
  • 31000073661Not stocked
    gripper support×1
  • 41000071990Not stocked
    gripper cylinder×1
  • 51000071952Not stocked
    cylinder pin×4
  • 61000071948Not stocked
    bearing bush×4
  • 71000071944Not stocked
    turn lever×1
  • 81000071945Not stocked
    turn lever×1
  • 91000019376Not stocked
    bushing×4
  • 101000071951Not stocked
    connecting rod×2
  • 111000071989Not stocked
    conn.rod pin×2
  • 121000071953Not stocked
    bucket tooth×1
  • 131000071967Not stocked
    pin×2
  • 141000071959Not stocked
    pin×2
  • 151000071958Not stocked
    pin×2
  • 161000071957Not stocked
    pin×2
  • 171000071950Not stocked
    pin×2
  • 181000071968Not stocked
    pin×2
  • 191000071956Not stocked
    pin×2
  • 201000071955Not stocked
    pin×2
  • 211000071954Not stocked
    pin×2
  • 221000071949Not stocked
    pin×2
  • 231000071988Not stocked
    cylinder protection×1
  • 241000082433
    $3.19
    HEX SCREW - 1000082433×4
  • 251000020820
    $3.19
    WASHER - 1000020820×8
  • 261000020788Not stocked
    hexagon nut×4
  • 271000085432
    $2.79
    HEX SCREW - 1000085432×4
  • 281000018440
    $1.10
    WASHER - 1000018440×4
  • 291000082434Not stocked
    hex screw×2
  • 301000015439Not stocked
    lock washer×2
  • 311000085317
    $0.97
    hex screw M8x55-8.8 A2C-DIN931 - 1000085317×2
  • 321000015431Not stocked
    washer×4
  • 331000015437Not stocked
    lock washer×10
  • 341000013021Not stocked
    hexagon nut×2
  • 351000085321
    $0.93
    hex screw - 1000085321×2
  • 361000013007Not stocked
    hex screw×2
  • 371000082609
    $0.73
    lock washer - 1000082609×4
  • 381000085404
    $0.93
    hex screw - 1000085404×4
  • 391000013008Not stocked
    hex screw×4
  • 401000082289Not stocked
    hex screw×1
  • 411000085429
    $1.71
    HEX SCREW - 1000085429×1
  • 421000015422Not stocked
    hexagon nut×1
  • 431000015423Not stocked
    hexagon nut×1
  • 441000015475Not stocked
    grease nipple×8
  • 451000015480Not stocked
    cap grease nipple×8
  • 461000070471Not stocked
    stud kit×1
