5001RDV

5001RDV chassis Diagram

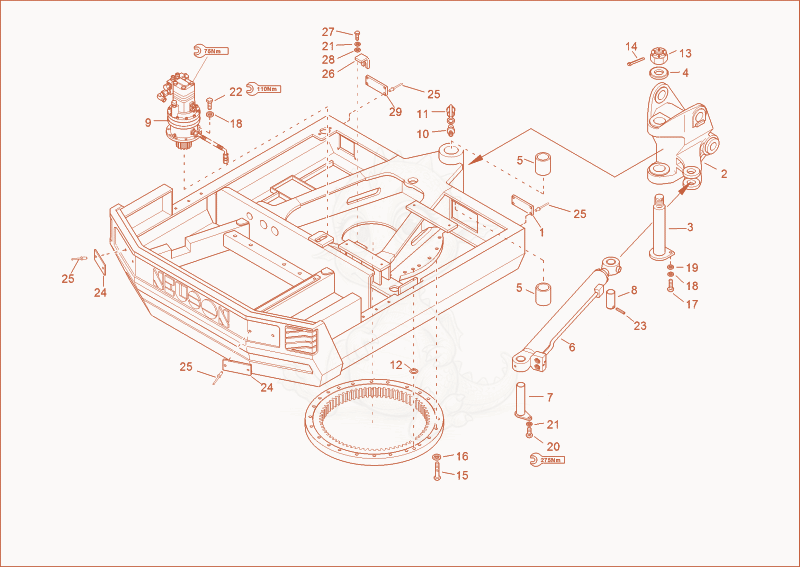

Exploded parts diagram of the chassis of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000002903
    $11.15
    REFLECTOR - 1000002903×2
  • 21000073034Not stocked
    swivel console×1
  • 31000012397Not stocked
    pin×1
  • 41000012398
    $12.03
    WASHER - 1000012398×1
  • 51000015605Not stocked
    steel bushing×2
  • 61000144097Not stocked
    boom offset cylinder×1
  • 71000073243Not stocked
    pin×1
  • 81000020013Not stocked
    pin×1
  • 91000073177Not stocked
    swivel drive×1
  • 101000015475Not stocked
    grease nipple×1
  • 111000015480Not stocked
    cap grease nipple×1
  • 121000095054
    $1.38
    O-RING - 1000095054×1
  • 131000015419Not stocked
    crown nut×1
  • 141000021603
    $0.88
    COTTERPIN - 1000021603×1
  • 151000082284
    $2.51
    hex screw - 1000082284×24
  • 161000020820
    $3.19
    WASHER - 1000020820×24
  • 171000085418
    $9.74
    hex screw - 1000085418×2
  • 181000082609
    $0.73
    lock washer - 1000082609×11
  • 191000049219Not stocked
    washer×2
  • 201000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×1
  • 211000015438Not stocked
    lock washer×3
  • 221000015372Not stocked
    hex screw×10
  • 231000082715
    $1.28
    cotter pin 8x80 - 1000082715×1
  • 241000004320
    $1.60
    REFLECTOR - 1000004320×2
  • 251000082697
    $0.80
    blind rivet A3x12 - 1000082697×8
  • 261000012312Not stocked
    torque support×1
  • 271000015364Not stocked
    hex screw×2
  • 281000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
