5001RDV

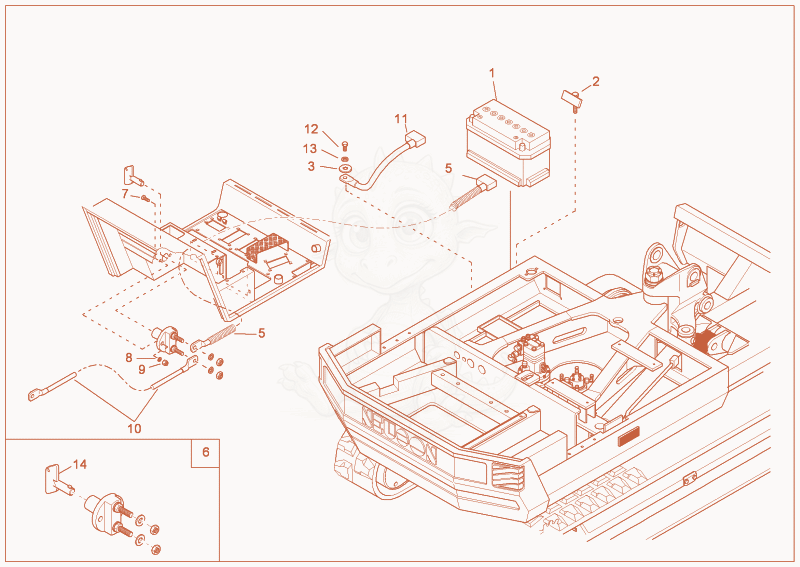

5001RDV battery Diagram

Exploded parts diagram of the battery of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000301731
    $325.19
    Battery 1000301731×1
  • 21000073408
    $9.90
    fastener screw - 1000073408×1
  • 31000013027Not stocked
    washer×2
  • 41000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 51000015308Not stocked
    battery cable×1
  • 61000081674
    $26.03
    shut off switch battery - 1000081674×1
  • 71000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 81000015436Not stocked
    lock washer×2
  • 91000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 101000081797Not stocked
    battery cable×1
  • 111000081798Not stocked
    battery cable×1
  • 121000013008Not stocked
    hex screw×1
  • 131000015437Not stocked
    lock washer×1
  • 141000084909
    $8.47
    cutoff switch key - 1000084909×1
