5001RDV LIFTING BOOM CYLINDER VERSION 2 Diagram

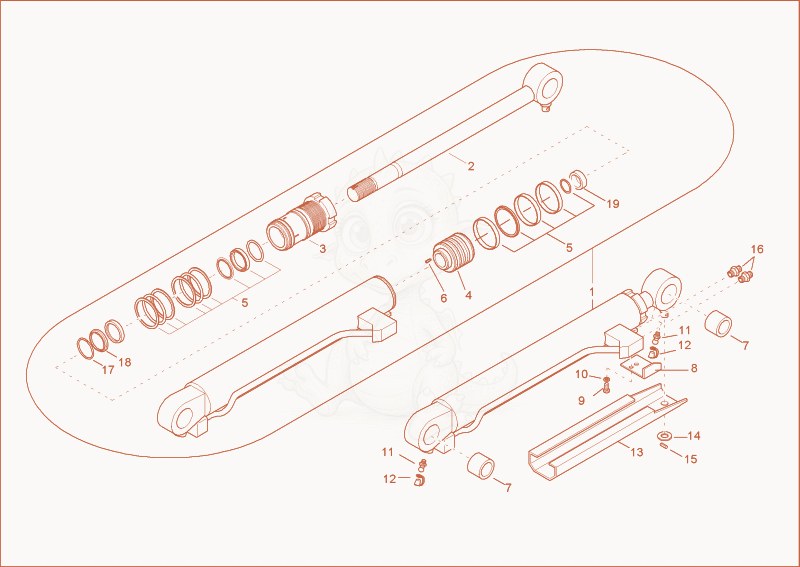

Exploded parts diagram of the LIFTING BOOM CYLINDER VERSION 2 of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000101248Not stocked
    lift cylinder×1
  • 21000021934Not stocked
    piston rod×1
  • 31000074315Not stocked
    guide bushing×1
  • 41000074311Not stocked
    piston×1
  • 51000012403Not stocked
    cylinder seal kit×1
  • 61000082320Not stocked
    thread pin×1
  • 71000015599Not stocked
    bushing×2
  • 81000074324Not stocked
    protection plate liftbeamram×1
  • 91000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 101000015438Not stocked
    lock washer×2
  • 111000015475Not stocked
    grease nipple×2
  • 121000015480Not stocked
    cap grease nipple×2
  • 131000012370Not stocked
    protecting rail×1
  • 141000082625
    $0.83
    washer 19 - 1000082625×1
  • 151000082718
    $0.74
    cotter pin - 1000082718×1
  • 161000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 171000082753Not stocked
    lock ring×1
  • 181000074322Not stocked
    fastenring×1
  • 191000169069Not stocked
    shock absorber×1
