5001RDV

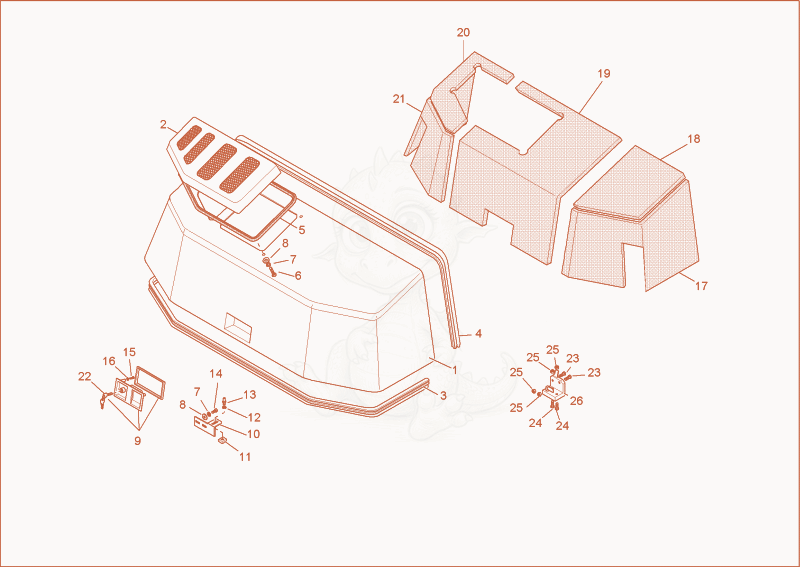

5001RDV engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000094100Not stocked
    engine hood×1
  • 21000094102Not stocked
    cooler cap×1
  • 31000098198
    $19.56
    RUBBER PROFILE - 1000098198×2
  • 41000098198
    $19.56
    RUBBER PROFILE - 1000098198×2
  • 51000022125Not stocked
    rubber profile×2
  • 61000015380Not stocked
    hex screw×4
  • 71000015437Not stocked
    lock washer×6
  • 81000013027Not stocked
    washer×6
  • 91000073400Not stocked
    bowl handle×1
  • 101000073385Not stocked
    bracket catch bolt×1
  • 111000068933Not stocked
    thread plate×1
  • 121000049219Not stocked
    washer×1
  • 131000073401
    $15.88
    catch bolt - 1000073401×1
  • 141000019136Not stocked
    hex screw×2
  • 151000015352Not stocked
    cheese head screw×2
  • 161000082608
    $0.06
    lock washer - 1000082608×2
  • 171000073249Not stocked
    insulating mat×1
  • 181000073250Not stocked
    insulating mat×1
  • 191000073247Not stocked
    insulating mat×1
  • 201000073251Not stocked
    insulating mat×1
  • 211000073248Not stocked
    insulating mat×1
  • 221000073912Not stocked
    key×1
  • 231000018400Not stocked
    hex screw×2
  • 241000082269Not stocked
    countersunk screw×2
  • 251000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 261000021841Not stocked
    safety lock×1
