5001RDV

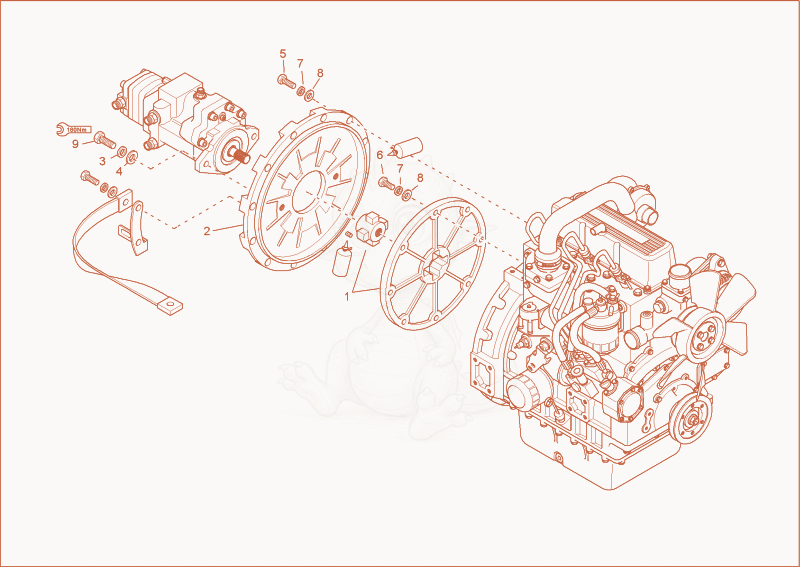

5001RDV HYDRAULIC PUMP DRIVE Diagram

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000012373Not stocked
    coupling×1
  • 21000012374Not stocked
    clutch flange×1
  • 31000015439Not stocked
    lock washer×2
  • 41000021001
    $0.89
    WASHER - 1000021001×2
  • 51000085434
    $1.78
    hex screw - 1000085434×12
  • 61000015367Not stocked
    hex screw×8
  • 71000015438Not stocked
    lock washer×20
  • 81000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×20
  • 91000085429
    $1.71
    HEX SCREW - 1000085429×2
