5001RDV

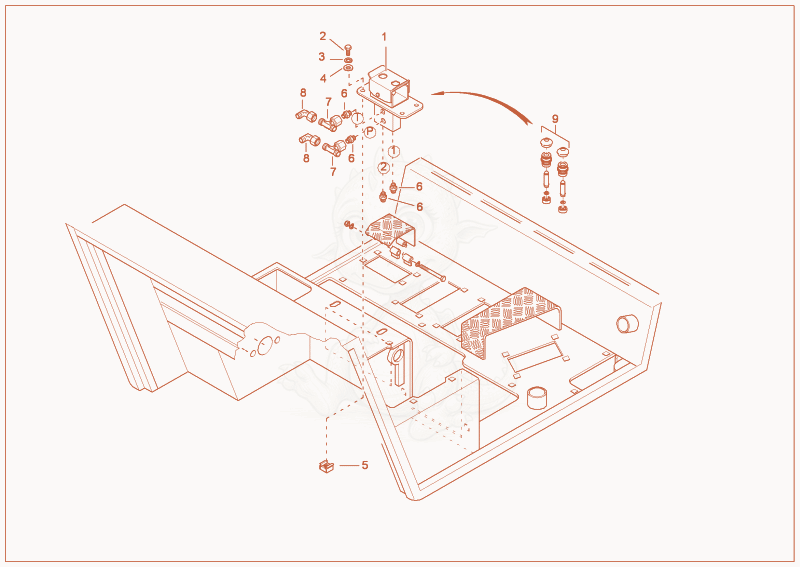

5001RDV AUXILIARY HYDRAULICS OPERATION Diagram

Exploded parts diagram of the AUXILIARY HYDRAULICS OPERATION of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000073117Not stocked
    pilot valve×1
  • 21000013008Not stocked
    hex screw×4
  • 31000015437Not stocked
    lock washer×4
  • 41000015431Not stocked
    washer×4
  • 51000015425Not stocked
    cage nut×4
  • 61000015488Not stocked
    screw joint×4
  • 71000015518
    $8.71
    ET08LOMDA3C - 1000015518×2
  • 81000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 91000163824
    $462.76
    PLUNGER KIT - 1000163824×1
