5001RDV

5001RDV DIPPER CYLINDER VERSION 3 Diagram

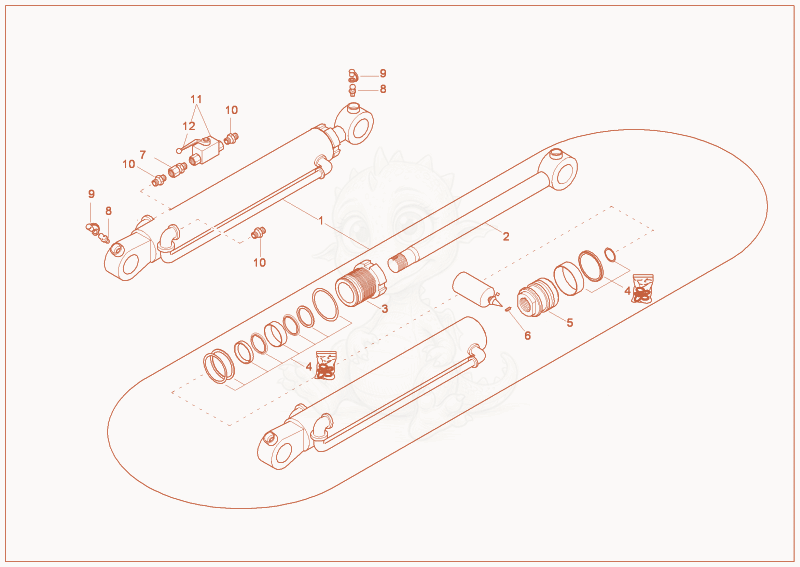

Exploded parts diagram of the DIPPER CYLINDER VERSION 3 of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000012623Not stocked
    bucket cylinder×1
  • 21000012631Not stocked
    piston rod×1
  • 31000074378Not stocked
    guide bushing×1
  • 41000012642
    $137.38
    CYLINDER SEAL KIT - 1000012642×1
  • 51000074375Not stocked
    piston×1
  • 61000015374Not stocked
    thread pin×1
  • 71000015524
    $9.05
    EGE18LREDA3C - 1000015524×1
  • 81000015476Not stocked
    grease nipple×2
  • 91000015480Not stocked
    cap grease nipple×2
  • 101000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×3
  • 111000138755
    $78.83
    BALL VALVE - 1000138755×1
  • 121000172516
    $14.84
    SW09 GEKR��PFT - 1000172516×1
