5001RDV

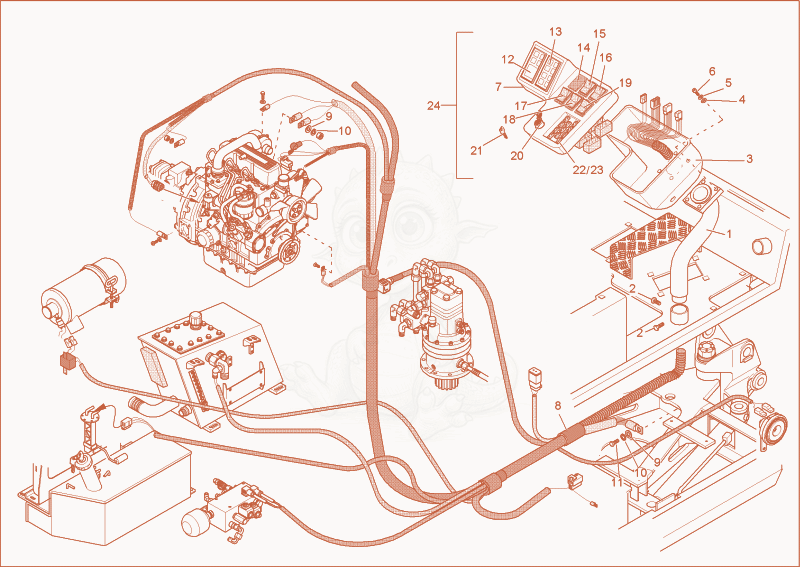

5001RDV ELECTRICAL INSTALLATION ENGINE Diagram

Exploded parts diagram of the ELECTRICAL INSTALLATION ENGINE of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000069509Not stocked
    bracket instruments×1
  • 21000013009Not stocked
    hex screw×2
  • 31000072730Not stocked
    housing instr. Panel×1
  • 41000095343
    $1.42
    washer A 6,4 St A2C DIN9021 - 1000095343×4
  • 51000015436Not stocked
    lock washer×4
  • 61000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×4
  • 71000072731Not stocked
    instrument panel×1
  • 81000072727Not stocked
    electric×1
  • 91000015431Not stocked
    washer×2
  • 101000015437Not stocked
    lock washer×2
  • 111000019136Not stocked
    hex screw×1
  • 121000080097Not stocked
    indicator instrument×1
  • 131000071883Not stocked
    indicator instrument×1
  • 141000027006Not stocked
    blind cover×1
  • 151000015300Not stocked
    switch rotating beacon×1
  • 161000081685Not stocked
    switch accelerated speed×1
  • 171000019919Not stocked
    switch wiper×1
  • 181000015294Not stocked
    switch heater×1
  • 191000015295Not stocked
    switch×1
  • 201000184001
    $125.82
    Ignition lock-R-1000125516 - 1000184001×1
  • 211000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 221000001534Not stocked
    fuse box×1
  • 231000099373
    $35.35
    COVER FUSE BOX - 1000099373×1
  • 241000112746Not stocked
    instrument panel×1
