5001RDV

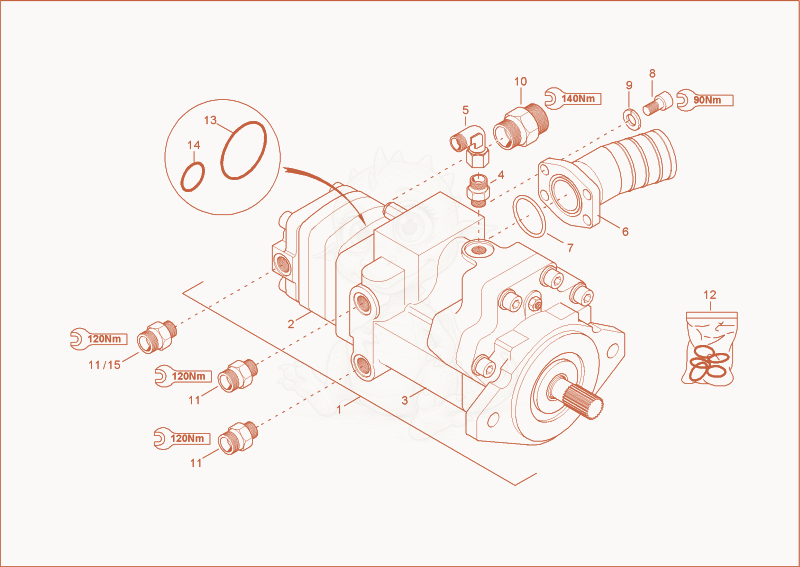

5001RDV hydraulic pump Diagram

Exploded parts diagram of the hydraulic pump of a Wacker Neuson 5001RDV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000012376Not stocked
    hydraulic pump×1
  • 21000012628
    $877.38
    GEAR PUMP - 1000012628×1
  • 31000012379Not stocked
    hydraulic pump×1
  • 41000022438Not stocked
    screw joint×1
  • 51000134882Not stocked
    NLA FOR INQUIRY×1
  • 61000073078Not stocked
    suction flange×1
  • 71000021782Not stocked
    o-ring×1
  • 81000085511
    $1.23
    cheese head screw M12x45 10.9Dacro500DIN - 1000085511×4
  • 91000082609
    $0.73
    lock washer - 1000082609×4
  • 101000015496Not stocked
    screw joint×1
  • 111000015499Not stocked
    screw joint×3
  • 121000012645Not stocked
    seal kit displace. Pump×1
  • 131000012375
    $1.68
    O-RING - 1000012375×1
  • 141000112019
    $2.11
    o-ring - 1000112019×1
  • 151000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×1
