Neuson 6502WD

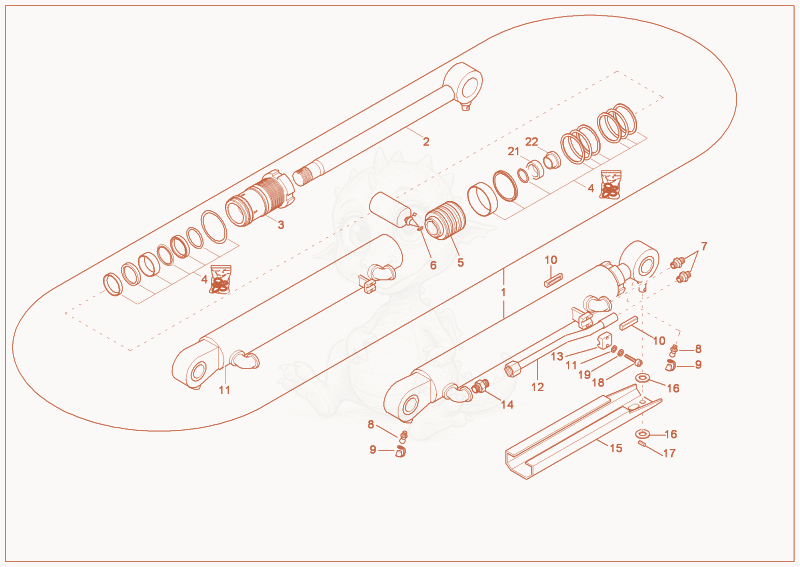

6502WD liftarm ram Diagram

Exploded parts diagram of the liftarm ram of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000019850
    $2,575.45
    lifting arm cylinder - 1000019850×1
  • 21000074373
    $449.19
    Pistonrod 1000074373×1
  • 31000074386
    $458.05
    Guide Bushing 1000074386×1
  • 41000074523
    $208.18
    SEAL KIT LIFT ARM RAM - 1000074523×1
  • 51000074387Not stocked
    piston×1
  • 61000015374Not stocked
    thread pin×1
  • 71000015559Not stocked
    screw joint×2
  • 81000015476Not stocked
    grease nipple×2
  • 91000015480Not stocked
    cap grease nipple×2
  • 101000012980
    $22.62
    GUIDE-ELEMENT - 1000012980×2
  • 111000074388Not stocked
    cylinder pipe×1
  • 121000020057Not stocked
    cylinder pipes assy.×1
  • 131000020059Not stocked
    pipe clamp×1
  • 141000015559Not stocked
    screw joint×1
  • 151000012625Not stocked
    protecting rail×1
  • 161000082625
    $0.83
    washer 19 - 1000082625×2
  • 171000082718
    $0.74
    cotter pin - 1000082718×1
  • 181000013014Not stocked
    cheese head screw×2
  • 191000015437Not stocked
    lock washer×2
  • 201000013027Not stocked
    washer×2
  • 211000191362
    $142.98
    shock absorber ring - 1000191362×1
  • 221000113070
    $47.60
    BUSHING SHOCK ABSORBER - 1000113070×1
