Neuson 6502WD

6502WD hose cover Diagram

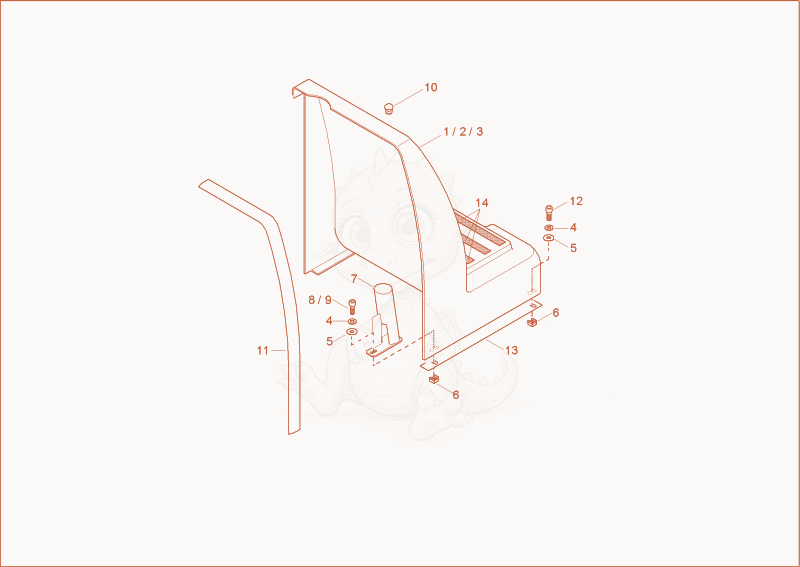

Exploded parts diagram of the hose cover of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000012598Not stocked
    hose cover×1
  • 21000073953Not stocked
    hose cover×1
  • 31000073954Not stocked
    hose cover×1
  • 41000015437Not stocked
    lock washer×3
  • 51000013027Not stocked
    washer×3
  • 61000015410Not stocked
    cage nut×3
  • 71000072478Not stocked
    bracket grease gun×1
  • 81000013008Not stocked
    hex screw×1
  • 91000015343Not stocked
    hex screw×1
  • 101000068819Not stocked
    plug×1
  • 111000097252
    $17.89
    RUBBER PROFILE - 1000097252×0.96
  • 121000013008Not stocked
    hex screw×2
  • 131000075330Not stocked
    shim×1
  • 141000158125
    $23.65
    antislide strip - 1000158125×1.9
