Neuson 6502WD

6502WD ARMSYSTEM INSTALLATION Diagram

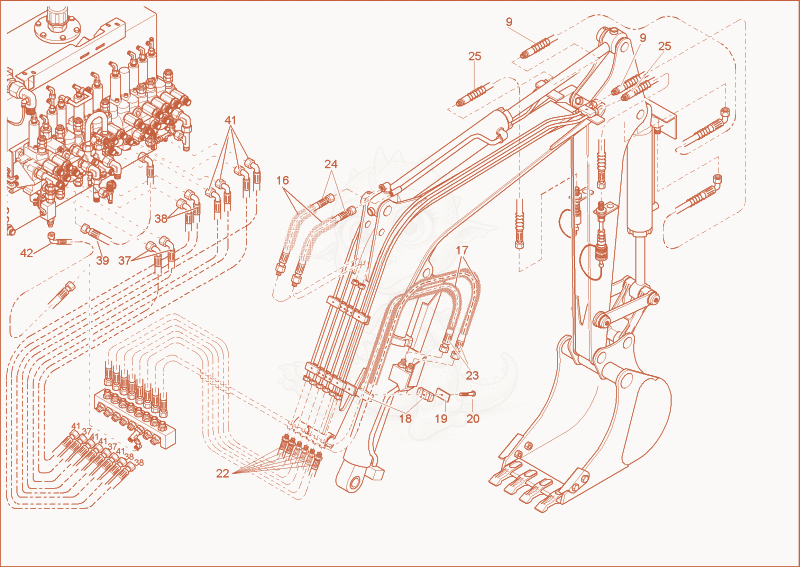

Exploded parts diagram of the ARMSYSTEM INSTALLATION of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 91000016757Not stocked
    Hose×2
  • 161000097911
    $52.93
    protecting hose - 1000097911×0.7
  • 171000097911
    $52.93
    protecting hose - 1000097911×1.2
  • 181000083314
    $1.51
    CLAMP BODY - 1000083314×2
  • 191000015629Not stocked
    cover plate×1
  • 201000015370Not stocked
    hex screw×1
  • 221000077548Not stocked
    Hose×6
  • 231000077617Not stocked
    Hose×2
  • 241000077550Not stocked
    Hose×2
  • 251000013227Not stocked
    Hose×2
  • 371000077547Not stocked
    Hose×2
  • 381000076554Not stocked
    Hose×2
  • 391000076555Not stocked
    Hose×1
  • 411000076556Not stocked
    Hose×4
  • 421000076557Not stocked
    Hose×1
