Neuson 6502WD

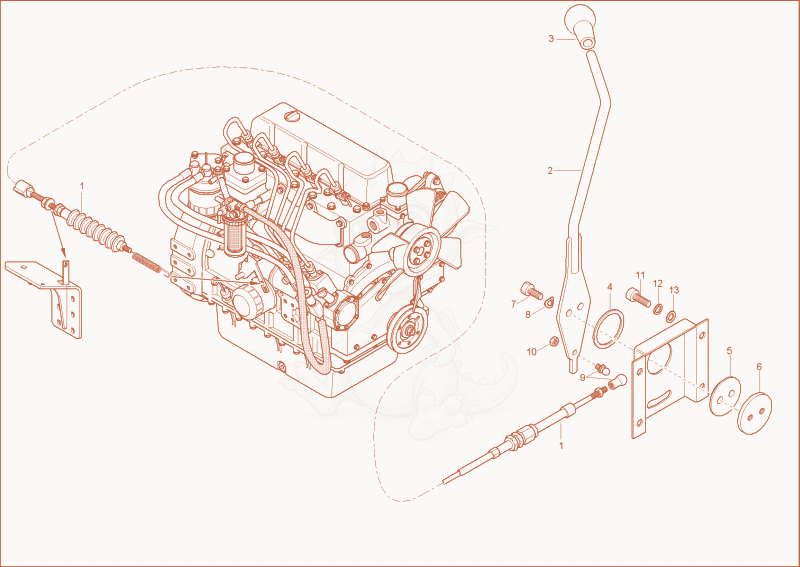

6502WD speed actuating Diagram
- 11000004682Not stockedaccelerator cable×1
- 21000069927Not stockedaccelerator lever×1
- handle - 1000098167×1
- 41000005104Not stockedbrake disc throttle×1
- 51000005102Not stockedwasher×1
- 61000005103Not stockedspeed lever spacer×1
- 71000015343Not stockedhex screw×2
- SPRING RING - 1000082618×2
- 91000015636Not stockedball and socket×1
- self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
- cheese head screw M 8x16-8.8 A2C - 1000085495×4
- 121000015437Not stockedlock washer×4
- 131000015448Not stockedwasher×4
