Neuson 6502WD

6502WD BRAKE VALVE Diagram

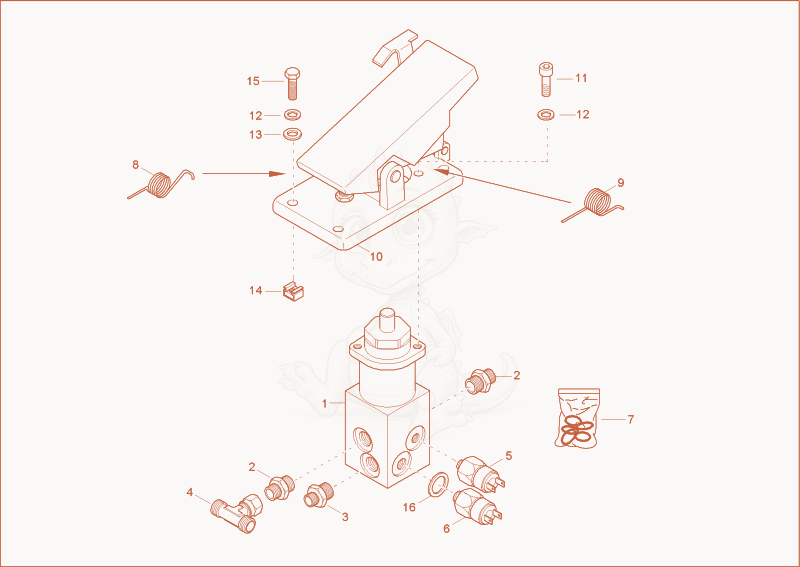

Exploded parts diagram of the BRAKE VALVE of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000072286Not stocked
    brake valve×1
  • 21000085053
    $2.82
    GE12LMEDOMDA3C - 1000085053×2
  • 31000082922
    $10.84
    GE08LM16X1,5EDOMDA3C - 1000082922×1
  • 41000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 51000072289
    $58.91
    PRESSURE SWITCH - 1000072289×1
  • 61000005154Not stocked
    pressure switch×1
  • 71000072352Not stocked
    seal kit foot brake valve×1
  • 81000099508
    $27.55
    CLAWW SPRING - 1000099508×1
  • 91000099509
    $54.34
    CLAWW SPRING - 1000099509×1
  • 101000021415Not stocked
    brake pedal×1
  • 111000013014Not stocked
    cheese head screw×2
  • 121000015437Not stocked
    lock washer×6
  • 131000015431Not stocked
    washer×4
  • 141000015425Not stocked
    cage nut×4
  • 151000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×4
  • 161000085676
    $0.80
    seal ring - 1000085676×1
