Neuson 6502WD

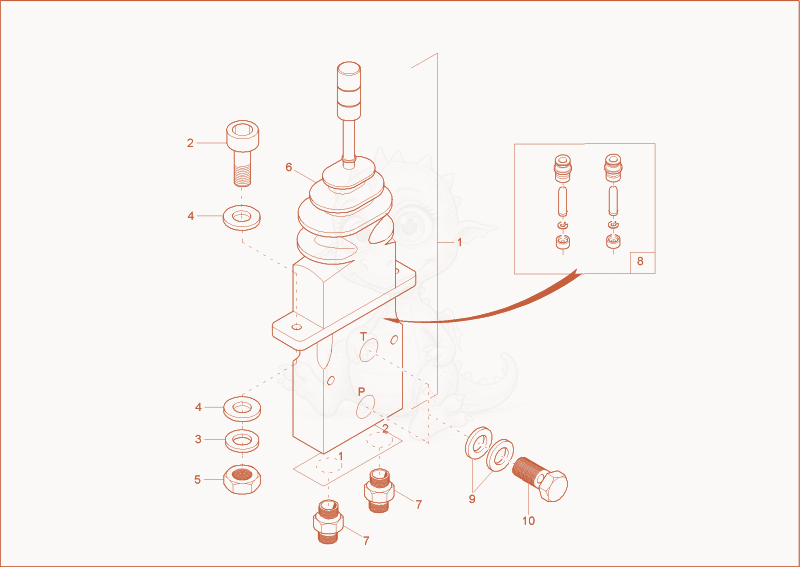

6502WD blade valve Diagram

Exploded parts diagram of the blade valve of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000073778
    $515.27
    Pilotvalve 1000073778×1
  • 21000019593Not stocked
    cheese head screw×2
  • 31000015437Not stocked
    lock washer×2
  • 41000095341
    $1.16
    WASHER - 1000095341×4
  • 51000013021Not stocked
    hexagon nut×2
  • 61000015089
    $90.00
    bellow - 1000015089×1
  • 71000015488Not stocked
    screw joint×2
  • 81000110001
    $228.57
    PUSH ROD - 1000110001×1
  • 91000083485
    $2.64
    copper ring - 1000083485×4
  • 101000083020
    $5.70
    banjo bolt G1/4" - 1000083020×2
