Neuson 6502WD

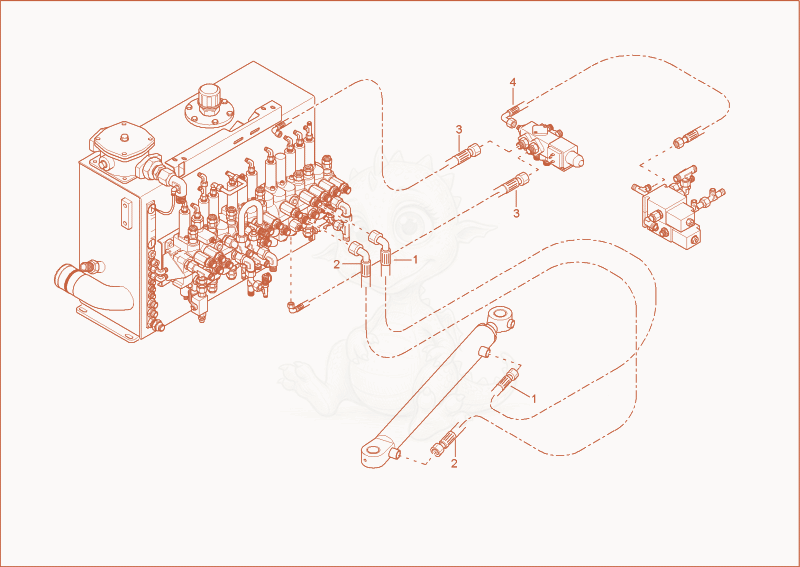

6502WD BOOM OFFSET CYLINDER INSTALLATION Diagram

Exploded parts diagram of the BOOM OFFSET CYLINDER INSTALLATION of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000111388
    $66.10
    SLHYDR 2SC+10 PN12 90 PN12 0 L900,0 - 1000111388×1
  • 21000111384Not stocked
    Hose×1
  • 31000076545
    $38.45
    SLHYDR 1SCP6,0PN8 0 PN8 90 L2000 0 - 1000076545×2
  • 41000013122
    $37.61
    SLHYDR 1SC 6,0PN8 90 PN8 0 L600,0 0 - 1000013122×1
