Neuson 6502WD

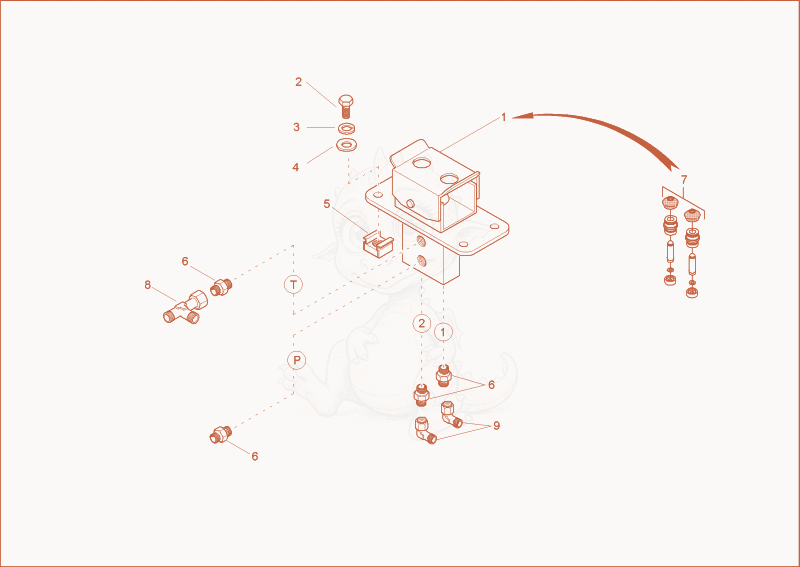

6502WD PILOT OPPERATED CHECK VALVES Diagram

Exploded parts diagram of the PILOT OPPERATED CHECK VALVES of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000012943Not stocked
    pilot valve×1
  • 21000019136Not stocked
    hex screw×4
  • 31000015437Not stocked
    lock washer×4
  • 41000015431Not stocked
    washer×4
  • 51000015425Not stocked
    cage nut×4
  • 61000015488Not stocked
    screw joint×4
  • 71000163824
    $462.76
    PLUNGER KIT - 1000163824×1
  • 81000015515Not stocked
    screw joint×1
  • 91000000542
    $11.08
    EW08LOMD - 1000000542×2
