Neuson 6502WD

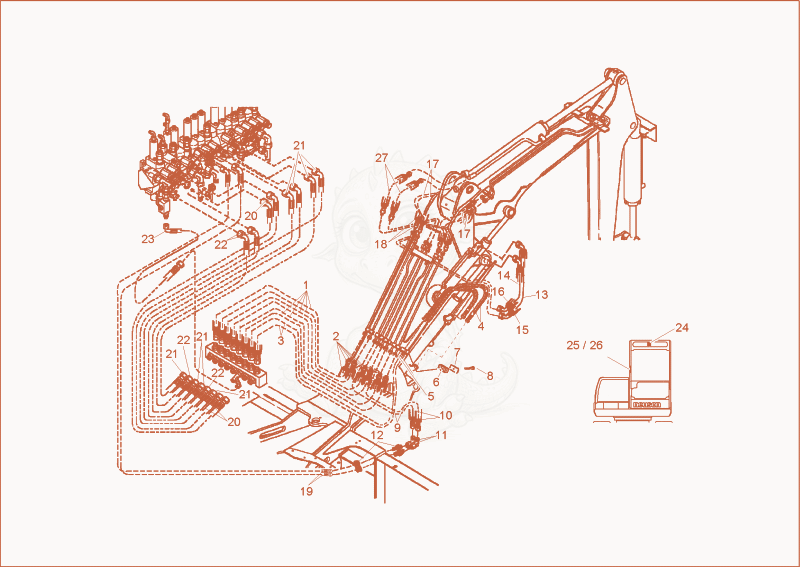

6502WD INST. LUFFING BOOM Diagram

Exploded parts diagram of the INST. LUFFING BOOM of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000111391Not stocked
    Hose×6
  • 21000097911
    $52.93
    protecting hose - 1000097911×1.3
  • 31000111393Not stocked
    Hose×2
  • 41000097911
    $52.93
    protecting hose - 1000097911×1.2
  • 51000097911
    $52.93
    protecting hose - 1000097911×1.4
  • 61000083314
    $1.51
    CLAMP BODY - 1000083314×2
  • 71000022379Not stocked
    cover plate×1
  • 81000082296
    $0.93
    cheese head screw M8x45-8.8 Dacro DIN912 - 1000082296×1
  • 91000111421Not stocked
    Hose×2
  • 101000097911
    $52.93
    protecting hose - 1000097911×1.3
  • 111000015513Not stocked
    screw joint×2
  • 121000015563Not stocked
    screw joint×2
  • 131000111389
    $102.03
    SLHYDR 2SC+16 PN18 90 PN18 0 L700,0 - 1000111389×2
  • 141000111422
    $147.37
    SLHYDR 2SC+16 PN18 90 PN18 0 L650,0 - 1000111422×2
  • 151000097911
    $52.93
    protecting hose - 1000097911×0.7
  • 161000097911
    $52.93
    protecting hose - 1000097911×0.6
  • 171000111419Not stocked
    Hose×4
  • 181000097911
    $52.93
    protecting hose - 1000097911×0.8
  • 191000111423Not stocked
    Hose×2
  • 201000111383Not stocked
    Hose×2
  • 211000111385Not stocked
    Hose×4
  • 221000111382Not stocked
    Hose×2
  • 231000111386Not stocked
    Hose×1
  • 241000081069Not stocked
    sticker vario beam×1
  • 251000080895Not stocked
    sticker lift force arm×1
  • 261000080896Not stocked
    sticker lift force arm×1
  • 271000111420Not stocked
    Hose×2
