Neuson 6502WD

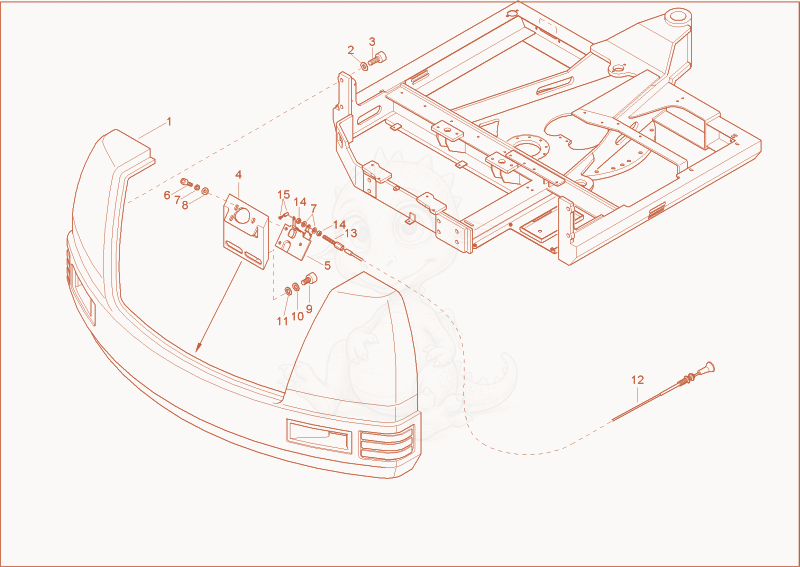

6502WD bumper Diagram

Exploded parts diagram of the bumper of a Wacker Neuson 6502WD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000073952Not stocked
    bumper×1
  • 21000018440
    $1.10
    WASHER - 1000018440×12
  • 31000085487
    $7.59
    cheese head screw - 1000085487×12
  • 41000021198Not stocked
    console lock×1
  • 51000020415Not stocked
    locking under part×1
  • 61000085455
    $0.81
    allen screw M6x16-8.8 A2C - 1000085455×3
  • 71000015436Not stocked
    lock washer×5
  • 81000019871Not stocked
    spring washer×3
  • 91000085473
    $1.28
    cheese head screw - 1000085473×2
  • 101000082609
    $0.73
    lock washer - 1000082609×2
  • 111000049219Not stocked
    washer×2
  • 121000012974Not stocked
    actuaction cable×1
  • 131000067547Not stocked
    screw×1
  • 141000015405Not stocked
    hexagon nut×2
  • 151000004372Not stocked
    screw nipple×1
