Excavator 6503

6503-2 crankshaft, piston Diagram

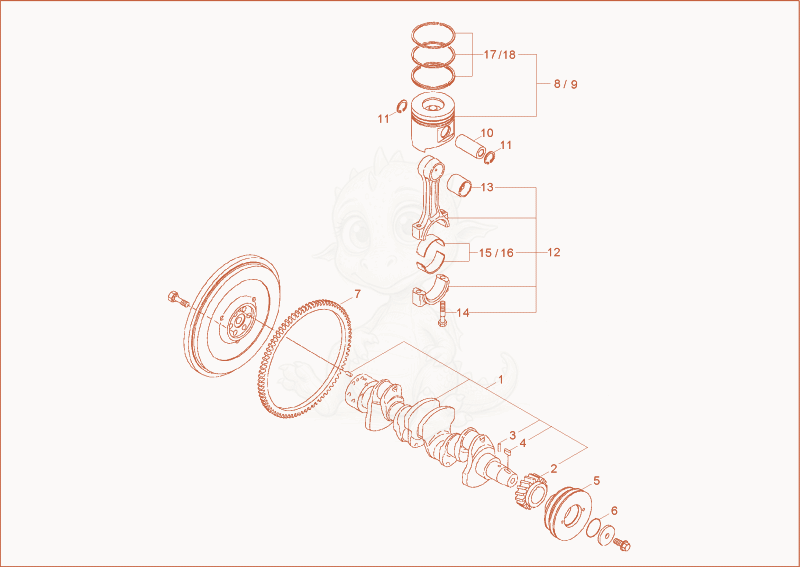

Exploded parts diagram of the crankshaft, piston of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000114349
    $1,550.11
    Crankshaft 1000114349×1
  • 21000125959
    $349.29
    GEAR - 1000125959×1
  • 31000125960
    $3.81
    PIN - 1000125960×1
  • 41000107537
    $2.10
    fitting key - 1000107537×1
  • 51000078936
    $308.56
    Beltpulley 1000078936×1
  • 61000125974
    $4.64
    O-Ring - 1000125974×1
  • 71000125727
    $224.04
    Ringgear 1000125727×1
  • 81000125977Not stocked
    piston×4
  • 91000125980Not stocked
    piston×4
  • 101000105204
    $117.31
    Pin - 1000105204×4
  • 111000105783
    $3.10
    lock ring - 1000105783×8
  • 121000075726
    $399.53
    Connectingrod 1000075726×4
  • 131000105785
    $27.01
    Bushing - 1000105785×4
  • 141000125979
    $3.47
    SCREW - 1000125979×8
  • 151000075708
    $62.32
    conn.rod bearing - 1000075708×4
  • 161000114348
    $65.81
    bearing - 1000114348×4
  • 171000125978Not stocked
    piston ring set×4
  • 181000125981Not stocked
    piston ring set×4
