Excavator 6503

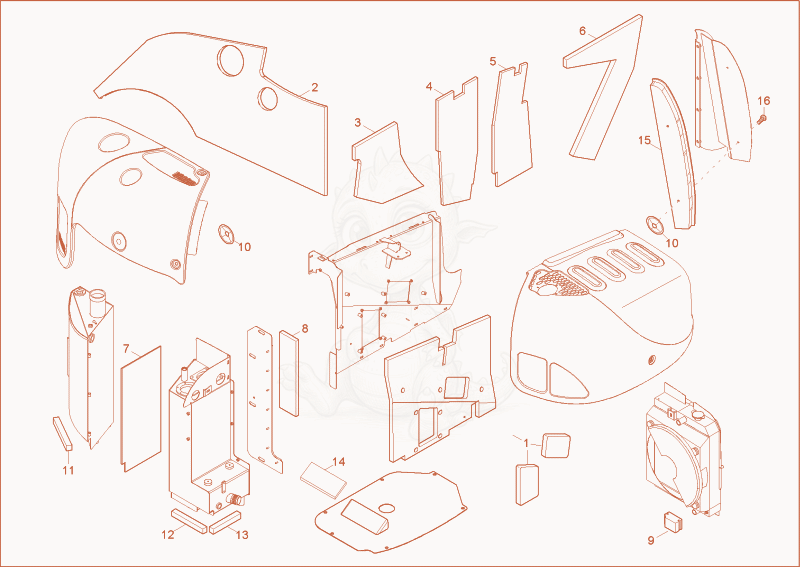

6503-2 insulating mat Diagram

Exploded parts diagram of the insulating mat of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000123958Not stocked
    ISOLATION MAT×1
  • 21000113350
    $512.84
    insulating mat - 1000113350×1
  • 31000114367
    $153.35
    bonnet insulating mat - 1000114367×1
  • 41000114368
    $296.09
    bonnet insulating mat - 1000114368×1
  • 51000113351
    $227.06
    bonnet insulating mat - 1000113351×1
  • 61000113352
    $313.20
    bonnet insulating mat - 1000113352×1
  • 71000113353
    $177.22
    insulating mat - 1000113353×1
  • 81000118109
    $75.30
    BULK PLATE - 1000118109×1
  • 91000128976Not stocked
    insulating mat cooler×1
  • 101000117022
    $1.09
    insulating washer - 1000117022×52
  • 111000132993
    $30.82
    insulating mat - 1000132993×1
  • 121000132995
    $30.82
    insulating mat - 1000132995×1
  • 131000132992
    $16.19
    insulating mat - 1000132992×1
  • 141000154503Not stocked
    insulating mat×1
  • 151000178061
    $86.14
    insulating mat - 1000178061×1
  • 161000085380
    $0.03
    hex screw - 1000085380×2
