Excavator 6503

6503-2 wiring harness lighting Diagram

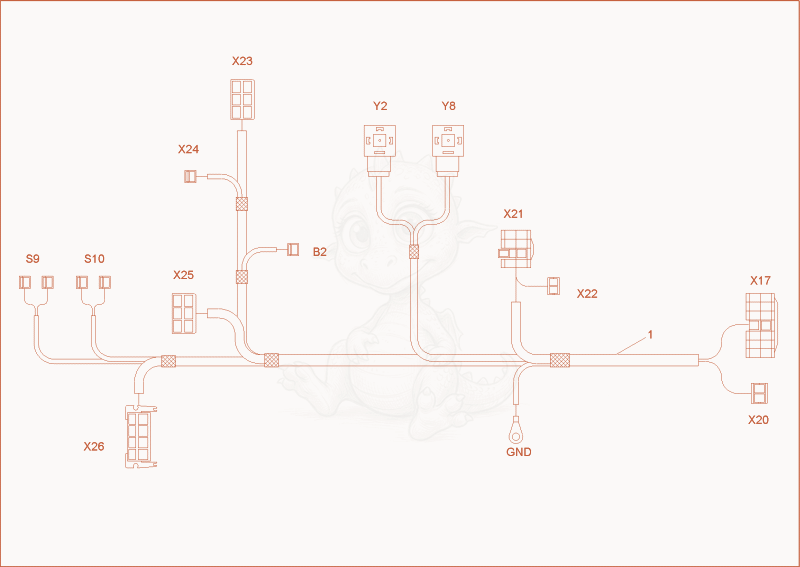

Exploded parts diagram of the wiring harness lighting of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000151837
    $144.77
    Wiringharnesslighting 1000151837×1
  • B21000027435Not stocked
    insulating sleeve×1
  • GND1000107754
    $2.77
    cable lug - 1000107754×1
  • S101000027435Not stocked
    insulating sleeve×2
  • S91000027435Not stocked
    insulating sleeve×2
  • X171000100618
    $7.48
    Pin housing - 1000100618×1
  • X201000000481Not stocked
    plug housing×1
  • X211000094922
    $2.70
    plug sleeve housing - 1000094922×1
  • X221000095336Not stocked
    plug sleeve housing×1
  • X231000095337
    $2.68
    plug sleeve housing - 1000095337×1
  • X241000027435Not stocked
    insulating sleeve×1
  • X251000095337
    $2.68
    plug sleeve housing - 1000095337×1
  • X261000095328
    $2.35
    plug housing - 1000095328×1
  • Y21000002986Not stocked
    valve plug×1
  • Y81000002986Not stocked
    valve plug×1
