Excavator 6503

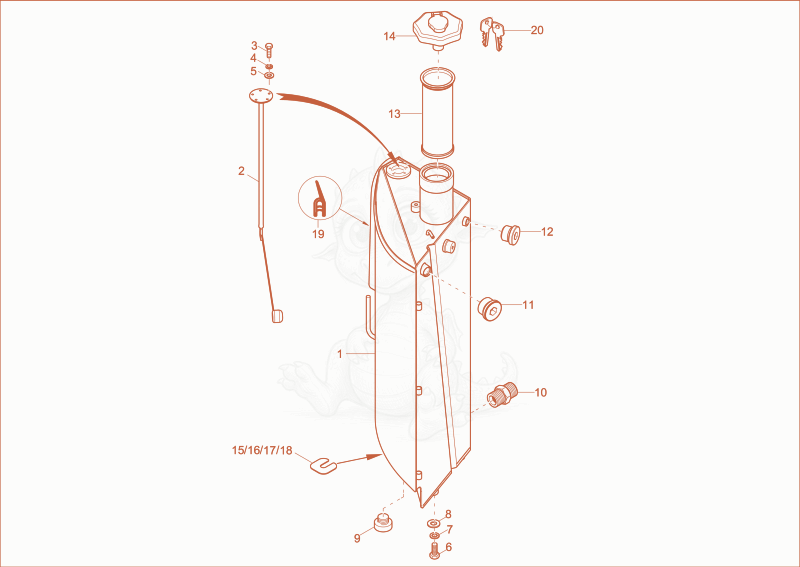

6503-2 fuel tank Diagram

Exploded parts diagram of the fuel tank of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000189753
    $2,371.60
    Fueltank 1000189753×1
  • 21000106874
    $88.42
    fuel transmitter EZ53 - 1000106874×1
  • 31000085377
    $0.68
    hex screw - 1000085377×5
  • 41000082608
    $0.06
    lock washer - 1000082608×5
  • 51000094962
    $0.04
    washer A 5,3 A2C DIN125 - 1000094962×5
  • 61000085438
    $1.16
    6-piont screw M12x50 - 1000085438×3
  • 71000082609
    $0.73
    lock washer - 1000082609×3
  • 81000085610
    $0.43
    WASHER - 1000085610×3
  • 91000020797Not stocked
    screw joint×1
  • 101000015489Not stocked
    screw joint×1
  • 111000082826
    $13.27
    VSTI3/4ORA3C - 1000082826×1
  • 121000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×1
  • 131000075385
    $15.22
    filling sieve - 1000075385×1
  • 141000376575Not stocked
    filler cap×1
  • 151000141773
    $32.48
    shim - 1000141773×1
  • 161000134431
    $3.28
    shim - 1000134431×1
  • 171000125638
    $7.33
    shim - 1000125638×2
  • 181000125639
    $9.00
    shim - 1000125639×1
  • 191000097252
    $17.89
    RUBBER PROFILE - 1000097252×1.5
  • 201000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
