Excavator 6503

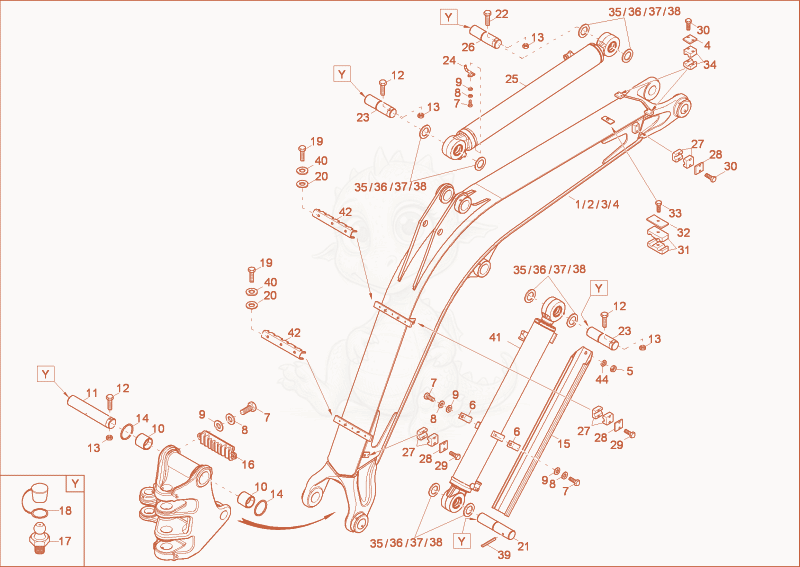

6503-2 lift arm Diagram
- 11000126572Not stockedlift arm×1
- 21000126573Not stockedlift arm×1
- 31000126574Not stockedlift arm×1
- 41000015627Not stockedcover plate×2
- hexagon nut - 1000082575×1
- 61000015633Not stockedpipe clamp×2
- hex screw M10x20-8.8 A2C DIN933 - 1000085411×5
- 81000015438Not stockedlock washer×5
- washer 10,5 A2C DIN125 - 1000015432×5
- 101000015606Not stockedsteel bushing×2
- PIN - 1000126563×1
- hex screw M8x120-8.8 A2C - 1000085353×3
- DIN985-M8-8-A2C - 1000015416×4
- 141000015708Not stockedpin gasket×2
- Protectingrail 1000107892×1
- clamp bar - 1000130888×1
- 171000015476Not stockedgrease nipple×5
- 181000015480Not stockedcap grease nipple×5
- 191000018447Not stockedhex screw×6
- 201000015431Not stockedwasher×6
- PIN - 1000334169×1
- hex screw - 1000085322×1
- Pin 1000109340×2
- bracket hose - 1000113935×1
- PENDX-1000276939 dipper arm cylinder - 1000186513×1
- Pin 1000109341×1
- clamp body - 1000083263×6
- 281000015623Not stockedcover plate×3
- hex screw - 1000085309×4
- hex screw - 1000085386×6
- clamp 18/2 - 1000083300×2
- 321000015629Not stockedcover plate×1
- 331000015380Not stockedhex screw×1
- 341000022327Not stockedclamp body×4
- shim - 1000147610×1
- shim - 1000146845×1
- shim - 1000146844×1
- shim - 1000147561×1
- 391000049781Not stockedcotter pin×1
- 401000015437Not stockedlock washer×6
- 411000109136Not stockedboom cylinder×1
- lifting arm cylinder X-1000276935 - 1000186538×1
- pipe clamp - 1000129330×2
- washer 13 -DIN134 - 1000082638×1
