Excavator 6503

6503-2 CUSHION CABIN Diagram

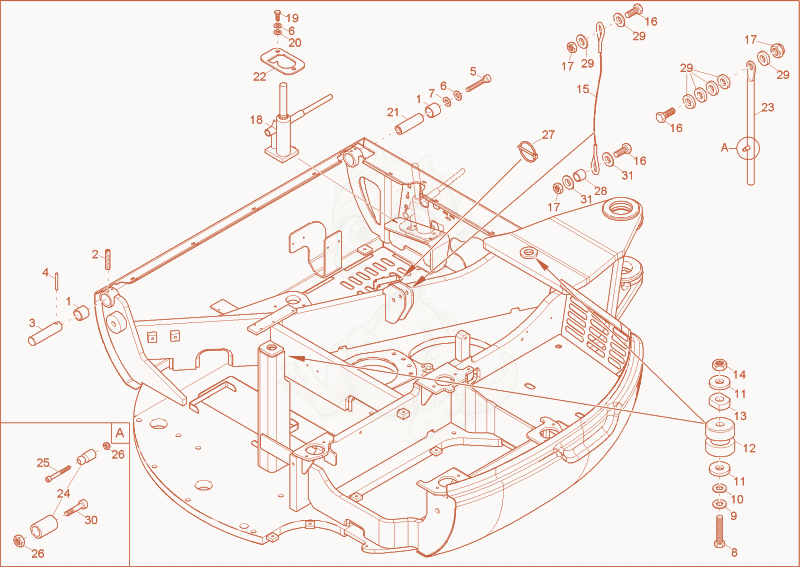

Exploded parts diagram of the CUSHION CABIN of a Wacker Neuson 6503-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000105024
    $118.92
    METAL- RUBBER BUSH - 1000105024×2
  • 21000082258
    $0.75
    thread pin - 1000082258×4
  • 31000109197
    $23.95
    PIN - 1000109197×1
  • 41000085646
    $0.12
    cotter pin - 1000085646×1
  • 51000085515
    $1.10
    cheese head screw - 1000085515×1
  • 61000015438Not stocked
    lock washer×3
  • 71000015434Not stocked
    washer×1
  • 81000114563
    $2.04
    HEX SCREW - 1000114563×2
  • 91000082609
    $0.73
    lock washer - 1000082609×2
  • 101000049219Not stocked
    washer×2
  • 111000114048
    $3.72
    shim - 1000114048×4
  • 121000105025
    $63.79
    METAL- RUBBER BUFFER - 1000105025×2
  • 131000065976Not stocked
    spacer×2
  • 141000015415Not stocked
    hexagon nut×2
  • 151000153102
    $63.14
    fasten rope - 1000153102×1
  • 161000085370
    $1.35
    hex screw - 1000085370×3
  • 171000020127Not stocked
    hexagon nut×3
  • 181000124170
    $93.84
    Jack - 1000124170×1
  • 191000085434
    $1.78
    hex screw - 1000085434×2
  • 201000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 211000109198
    $52.93
    bushing - 1000109198×1
  • 221000108907
    $23.63
    fixing plate - 1000108907×1
  • 231000118057
    $39.77
    CAB SUPPORT - 1000118057×1
  • 241000118072
    $14.61
    METAL- RUBBER BUFFER - 1000118072×1
  • 251000082307
    $0.04
    BOLT M4x30 8.8 A2C-DIN912 - 1000082307×1
  • 261000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×2
  • 271000015457Not stocked
    cotter pin×1
  • 281000153105
    $4.24
    sleeve - 1000153105×1
  • 291000085610
    $0.43
    WASHER - 1000085610×7
  • 301000082474
    $0.80
    allen screw M4x16-8.8 A2C-DIN912 - 1000082474×1
  • 311000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
