Excavator 6503

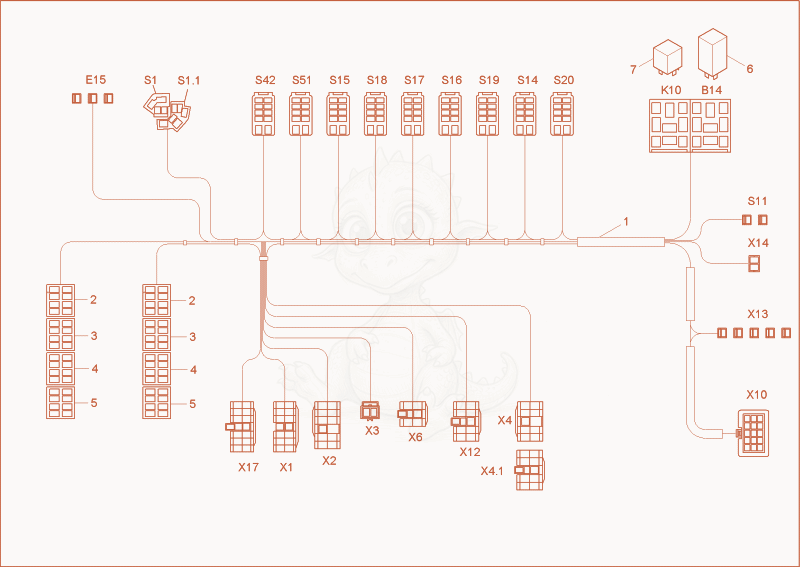

6503-2 WIRE HARNESS SWITCH Diagram

Exploded parts diagram of the WIRE HARNESS SWITCH of a Wacker Neuson 6503-2, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000151841Not stocked
WIRE HARNESS SWITCH×1
21000101620
$8.84
Socket housing - 1000101620×2
31000101621
$8.84
Socket housing - 1000101621×2
41000101622
$8.84
Socket housing - 1000101622×2
51000101623
$8.84
Socket housing - 1000101623×2
61000139287
$64.10
signal - 1000139287×1
71000015315Not stocked
relay×1
B141000082001
$3.89
sockets - 1000082001×1
E151000027435Not stocked
insulating sleeve×3
K101000082001
$3.89
sockets - 1000082001×1
S11000027368Not stocked
central plug×1
S1.11000027386
$6.47
PLUG - 1000027386×1
S111000027435Not stocked
insulating sleeve×2
S141000124011
$25.98
bushing housing - 1000124011×1
S151000124011
$25.98
bushing housing - 1000124011×1
S161000124011
$25.98
bushing housing - 1000124011×1
S171000124011
$25.98
bushing housing - 1000124011×1
S181000124011
$25.98
bushing housing - 1000124011×1
S191000124011
$25.98
bushing housing - 1000124011×1
S201000124011
$25.98
bushing housing - 1000124011×1
S421000124011
$25.98
bushing housing - 1000124011×1
S511000124011
$25.98
bushing housing - 1000124011×1
X11000100618
$7.48
Pin housing - 1000100618×1
X101000104663
$11.53
Pin housing - 1000104663×1
X121000095321
$5.84
bushing housing - 1000095321×1
X131000027435Not stocked
insulating sleeve×5
X141000095336Not stocked
plug sleeve housing×1
X171000095331
$6.16
plug sleeve housing - 1000095331×1
X21000101655
$8.99
pin housing - 1000101655×1
X31000103751
$12.19
plug housing - 1000103751×1
X41000101653
$6.73
plug sleeve housing - 1000101653×1
X4.11000095321
$5.84
bushing housing - 1000095321×1
X61000095320
$4.55
plug sleeve housing - 1000095320×1
