Excavator 6503

6503-2 sticker Diagram

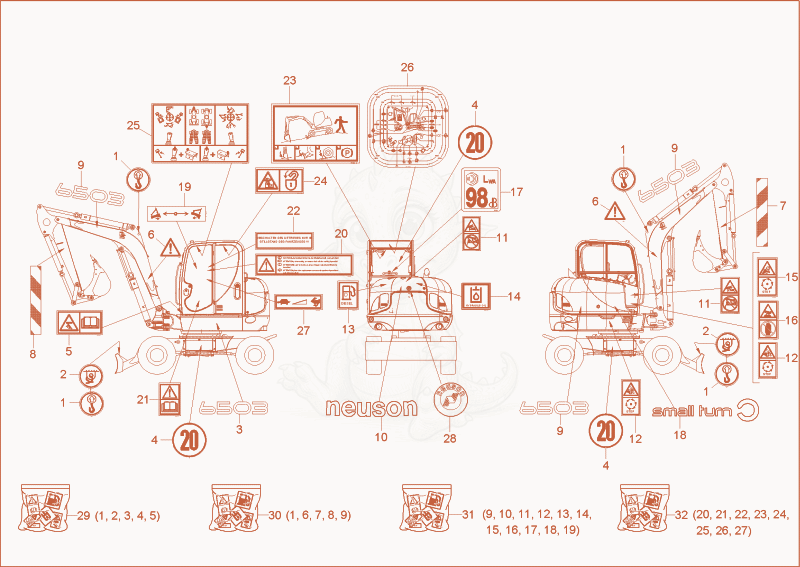

Exploded parts diagram of the sticker of a Wacker Neuson 6503-2, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

11000015238Not stocked
sticker 'security'×4
21000080709
$5.04
sticker 'security' - 1000080709×2
31000149899
$68.16
STICKER TYPE LOGO - 1000149899×1
41000080563
$17.34
indication label - 1000080563×3
51000080789
$4.71
sticker 'security' - 1000080789×1
61000015239Not stocked
sticker 'security'×2
71000149896
$71.88
sticker warning strip - 1000149896×1
81000149897
$56.85
sticker warning strip - 1000149897×1
91000149902
$58.83
STICKER TYPE LOGO - 1000149902×3
101000125503
$104.03
sticker neuson logo - 1000125503×1
111000135226
$21.41
STICKER - 1000135226×2
121000135230
$6.44
sticker 'security' - 1000135230×2
131000080515
$4.32
STICKER - 1000080515×1
141000080516
$2.85
STICKER - 1000080516×1
151000080844
$8.32
sticker v-belt - 1000080844×1
161000080846
$3.25
STICKER - 1000080846×1
171000081102
$14.18
sticker lwa 98 - 1000081102×1
181000108411Not stocked
sticker×1
191000112060
$22.53
STICKER - 1000112060×1
201000080561
$48.52
sticker 'security' - 1000080561×1
211000080720
$10.43
sticker 'security' - 1000080720×1
221000080891
$21.94
sticker 'security' - 1000080891×1
231000081066
$23.87
sticker safe stop - 1000081066×1
241000135229
$89.77
sticker front window - 1000135229×1
251000149898
$58.83
STICKER 'SECURITY' - 1000149898×1
261000149895
$41.06
STICKER - 1000149895×1
271000080785
$42.53
sticker rpm p - 1000080785×1
281000101091
$51.73
Badge - 1000101091×1
291000149868
$99.84
sticker set - 1000149868×1
301000149869
$266.80
sticker set - 1000149869×1
311000149870Not stocked
sticker set×1
321000149871
$91.13
STICKER SET - 1000149871×1
