E1100 GROUND HEATER

E1100 Hose Reel cpl. Diagram

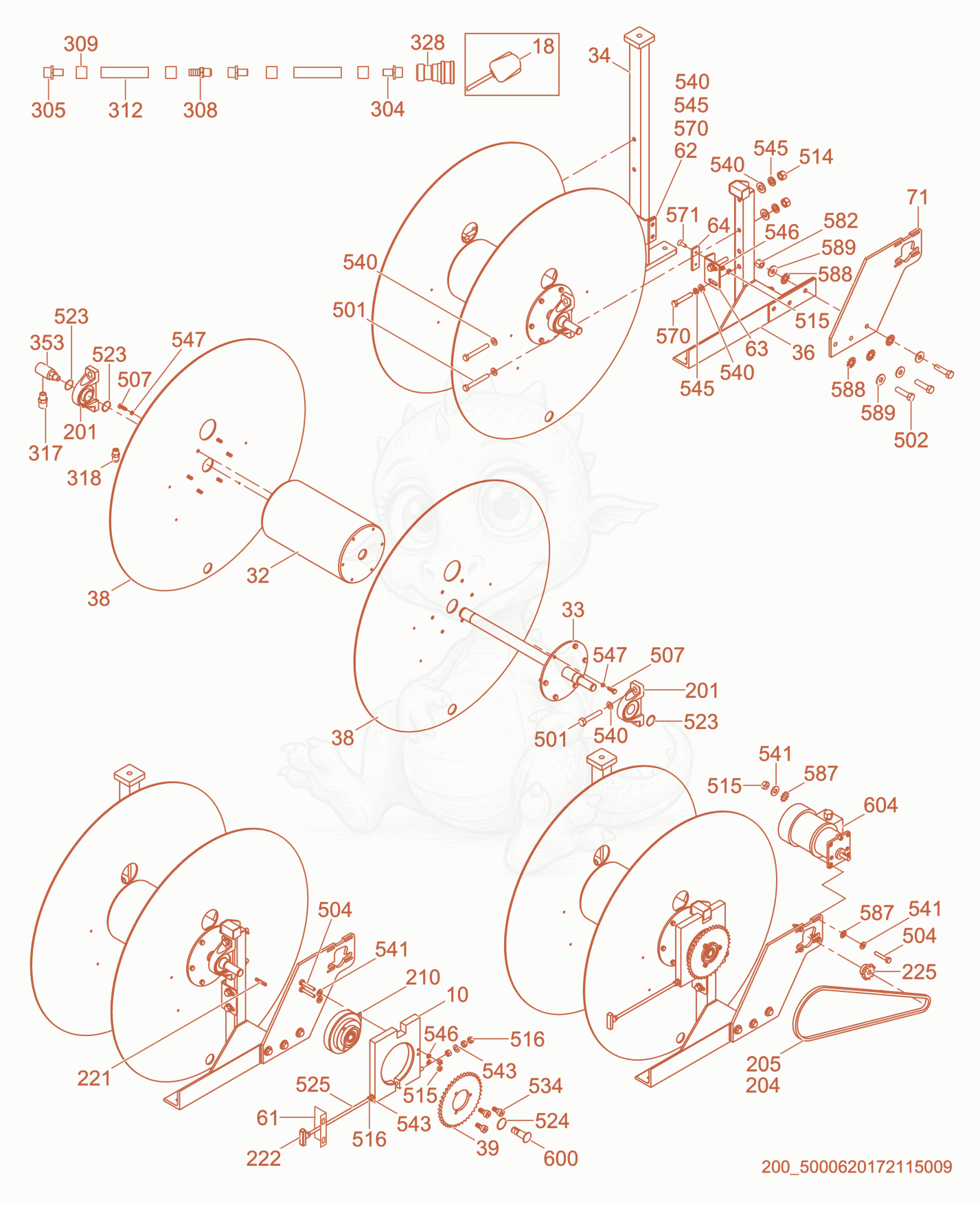

Exploded parts diagram of the Hose Reel cpl. of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105000166902Not stocked
    Brake×1
  • 185000166496Not stocked
    Switch×1
  • 325000169542Not stocked
    Hub×1
  • 335200005206Not stocked
    Shaft×1
  • 345000169514Not stocked
    Stand×1
  • 365200004589Not stocked
    Stand×1
  • 385000167105Not stocked
    Spool disc×2
  • 395000166894Not stocked
    Sprocket×1
  • 615000179904Not stocked
    Bracket×1
  • 625000179997Not stocked
    Bracket×1
  • 635000179998Not stocked
    Bracket×1
  • 645000180001Not stocked
    Shim×1
  • 715200004620Not stocked
    Plate×1
  • 2015000168103Not stocked
    Bearing×2
  • 2045000168076Not stocked
    Connecting link×1
  • 2055100064934Not stocked
    KIT-CHAIN, E1100, E350M, No. 50×1
  • 2105000168104Not stocked
    Clutch×1
  • 2215000168292Not stocked
    Square key×1
  • 2225000168100Not stocked
    Knob×1
  • 2255000168107Not stocked
    Sprocket×1
  • 3045000168437Not stocked
    Barbed hose fitting×2
  • 3055000168369
    $9.85
    HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×2
  • 3085000168376
    $35.27
    HOSE END, 5/8 X 5/8 JIC,BRASS - 5000168376×2
  • 3095000168042
    $4.42
    HOSE FERRULE, 0.975 ID, BRASS - 5000168042×5
  • 3125000169435Not stocked
    Hose×2
  • 3175000168373Not stocked
    Adapter×1
  • 3185000168371Not stocked
    Adapter×1
  • 3285000168213Not stocked
    Quick disconnect coupling×2
  • 3535000168109Not stocked
    Swivel×1
  • 5015000167781Not stocked
    Bolt×4
  • 5025000167701Not stocked
    Bolt×3
  • 5045000167702Not stocked
    Bolt×6
  • 5075000167705Not stocked
    Bolt×12
  • 5145000167689Not stocked
    Nut×2
  • 5155000167690Not stocked
    Nut×10
  • 5165000167691Not stocked
    Nut×5
  • 5235000168480Not stocked
    Retaining ring×3
  • 5245200005254Not stocked
    Flat washer×1
  • 5255000169385Not stocked
    Rod×2
  • 5345000167840Not stocked
    Screw×3
  • 5405000167728Not stocked
    Flat washer×12
  • 5415000167729Not stocked
    Flat washer×10
  • 5435000167730Not stocked
    Flat washer×4
  • 5455000167734Not stocked
    Lock washer×6
  • 5465000167733Not stocked
    Lock washer×2
  • 5475000167735Not stocked
    Lock washer×12
  • 5705000167779Not stocked
    Bolt×4
  • 5715000167768Not stocked
    Screw×4
  • 5825000167792Not stocked
    Nut×3
  • 5875000189214Not stocked
    Washer×8
  • 5885200004821Not stocked
    Washer×6
  • 5895000167808Not stocked
    Fender washer×3
  • 6005200005291Not stocked
    Flat head screw×1
  • 6045000168755Not stocked
    Gear×1
