E1100 GROUND HEATER

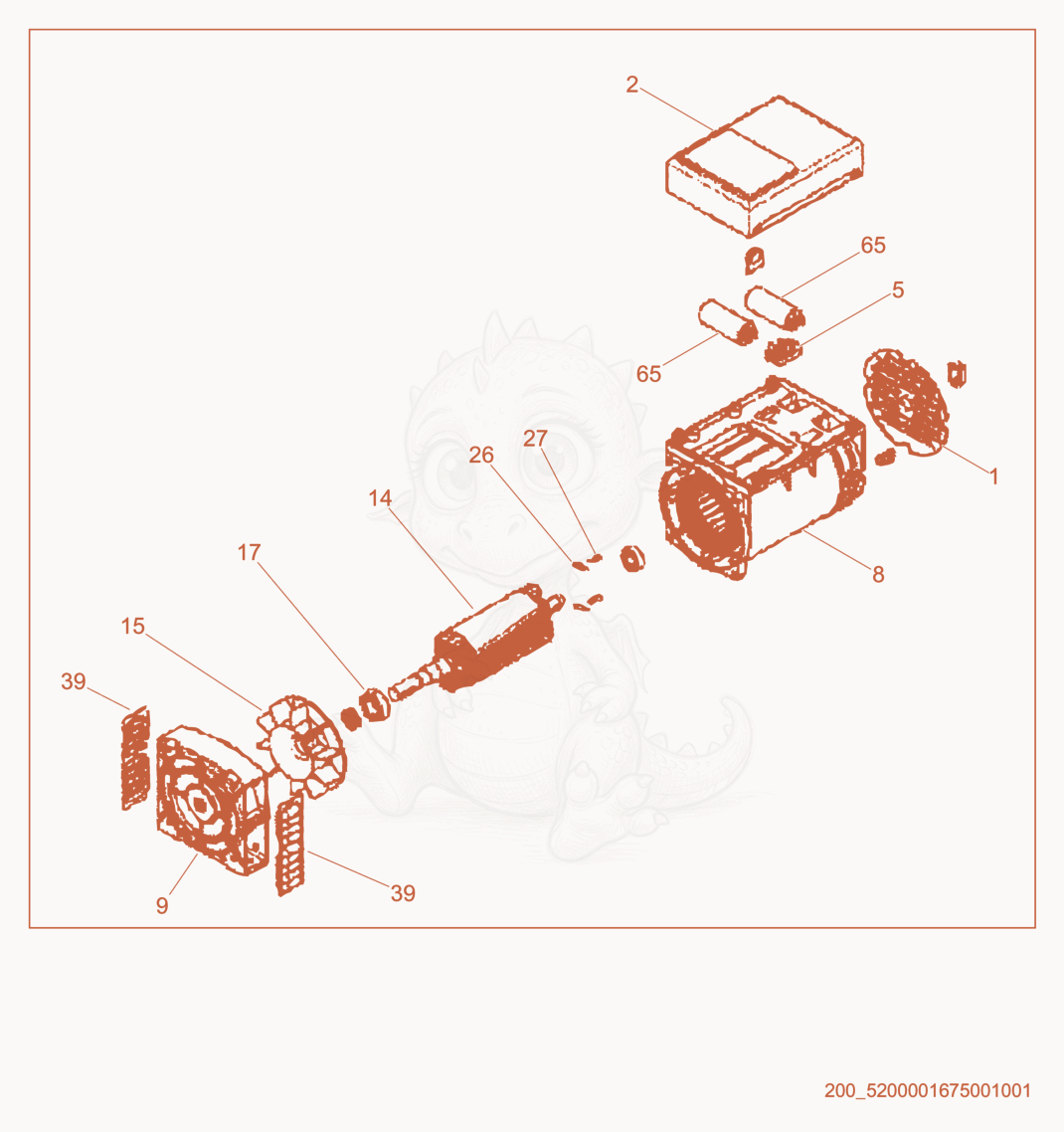

E1100 Generator Diagram

Exploded parts diagram of the Generator of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200006564Not stocked
    Cover×1
  • 25200006565Not stocked
    Cover×1
  • 55200006566Not stocked
    Terminal board×1
  • 85200006573Not stocked
    Stator×1
  • 95200006568Not stocked
    Alternator bracket×1
  • 145200006569Not stocked
    Rotor×1
  • 155200006570Not stocked
    Fan×1
  • 175200006571Not stocked
    Bearing×1
  • 265000176415
    $112.38
    KIT-DIODE,GENERATOR END - 5000176415×1
  • 295200006575Not stocked
    Stud×1
  • 395200006572Not stocked
    Grille guard×1
  • 655000155624
    $161.71
    CAPACITOR,35 MFD W/TIE WRAP - 5000155624×2
