E1100 GROUND HEATER

E1100 Hydronic Piping cpl. Diagram

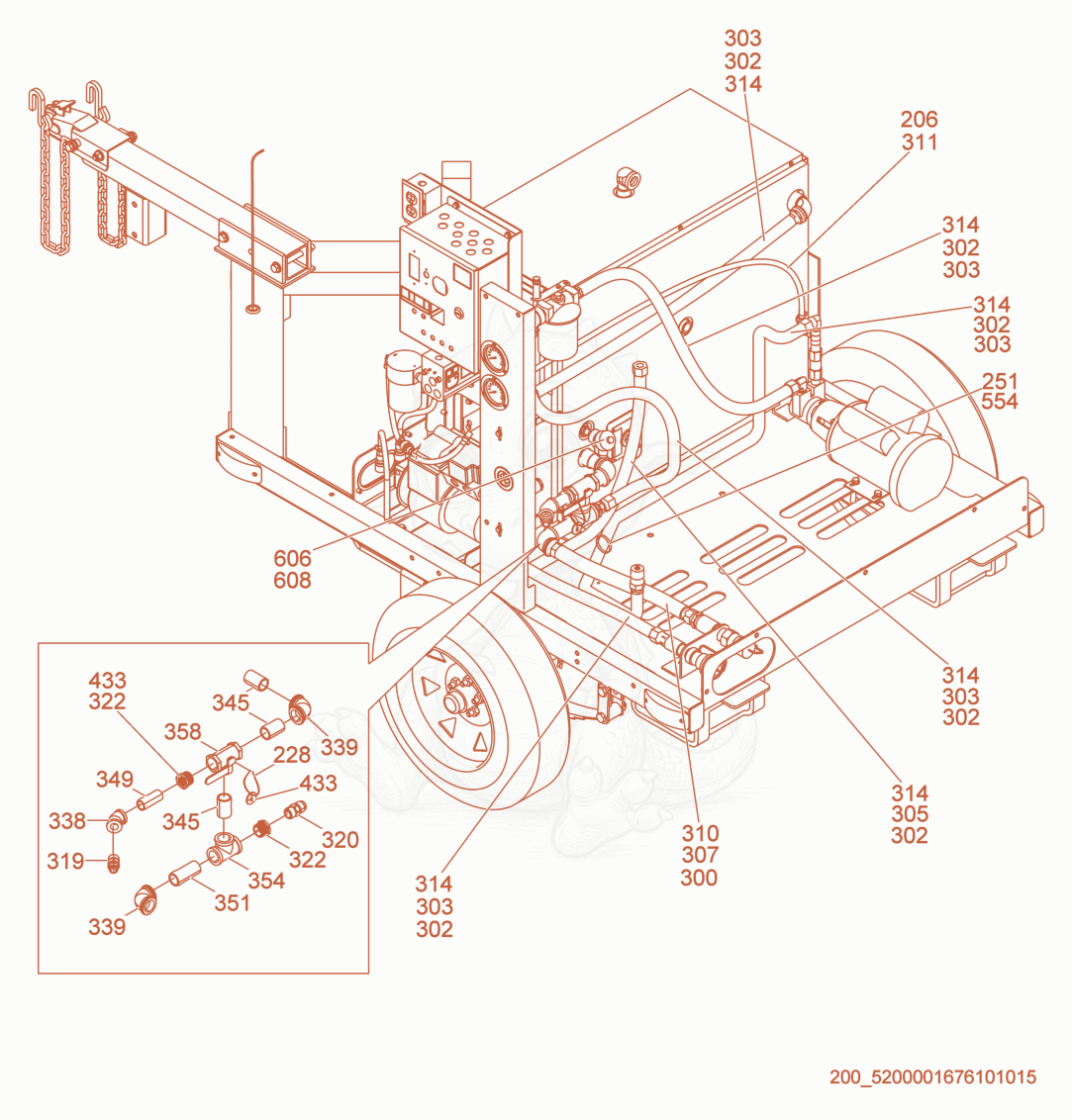

Exploded parts diagram of the Hydronic Piping cpl. of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2065000168334Not stocked
    Clamp×2
  • 2285000167727Not stocked
    Tie wire×1
  • 2515000170267Not stocked
    Clamp×1
  • 3005000168386Not stocked
    Barbed hose fitting×1
  • 3025000168144Not stocked
    Hose barb×6
  • 3035000168370Not stocked
    Hose barb×5
  • 3055000168369
    $9.85
    HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×1
  • 3075000168585Not stocked
    Hose end swivel×1
  • 3105000169410Not stocked
    Hose×1
  • 3115000169397Not stocked
    Hose×1
  • 3145000169406Not stocked
    Hose×6
  • 3195000168372Not stocked
    Adapter×1
  • 3205000168163Not stocked
    Turbulator×1
  • 3225000168011Not stocked
    Bushing×2
  • 3295000168214Not stocked
    Quick disconnect coupling×1
  • 3385000168498Not stocked
    Elbow×1
  • 3395000168328Not stocked
    Elbow×2
  • 3395000168328Not stocked
    Elbow×2
  • 3455000168331Not stocked
    Nipple fitting×2
  • 3495000168710Not stocked
    Nipple fitting×1
  • 3515000168712Not stocked
    Nipple fitting×1
  • 3545000168326Not stocked
    Tee-fitting×1
  • 3585000168474Not stocked
    Valve×1
  • 4335000168187Not stocked
    Tag No. 2×1
  • 5545000167793Not stocked
    Screw×1
  • 5705000166711Not stocked
    Thermowell×1
  • 6065000166712Not stocked
    Thermocouple×1
