E1100 GROUND HEATER

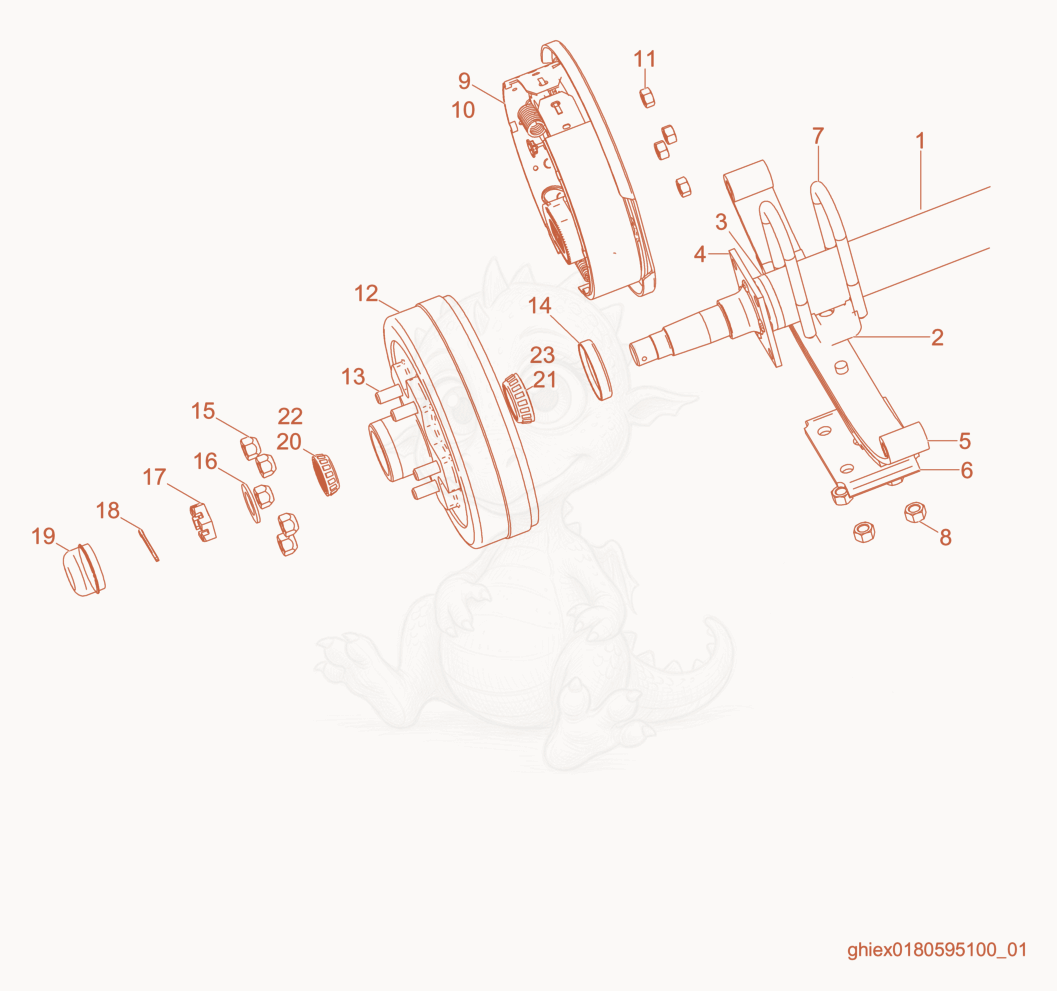

E1100 Axle Diagram

Exploded parts diagram of the Axle of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172405Not stocked
    Tube×1
  • 25000172406Not stocked
    Seat-spring×2
  • 35000172410Not stocked
    Spindle×2
  • 45000172569Not stocked
    Axle×2
  • 55000179806Not stocked
    Spring×2
  • 65000172408Not stocked
    Plate×2
  • 75000179807Not stocked
    U-Bolt×4
  • 85000172433Not stocked
    Lock nut×8
  • 95000172574Not stocked
    Axle×1
  • 105000172573Not stocked
    Axle×1
  • 115000179808Not stocked
    Nut×8
  • 125000179809Not stocked
    Hub cpl.×2
  • 135000177742Not stocked
    Stud×10
  • 145000172416Not stocked
    Seal×2
  • 155000172445Not stocked
    Nut×10
  • 165000172411Not stocked
    Washer×2
  • 175000172443Not stocked
    Nut×2
  • 185000172412Not stocked
    Cotter pin×2
  • 195000169242Not stocked
    Grease cover×2
  • 205000177824Not stocked
    Bearing race×2
  • 215000177826Not stocked
    Bearing race×2
  • 225000172414Not stocked
    Bearing×2
  • 235000172415Not stocked
    Bearing×2
