E1100 GROUND HEATER

E1100 Hydronic heater cpl. Diagram

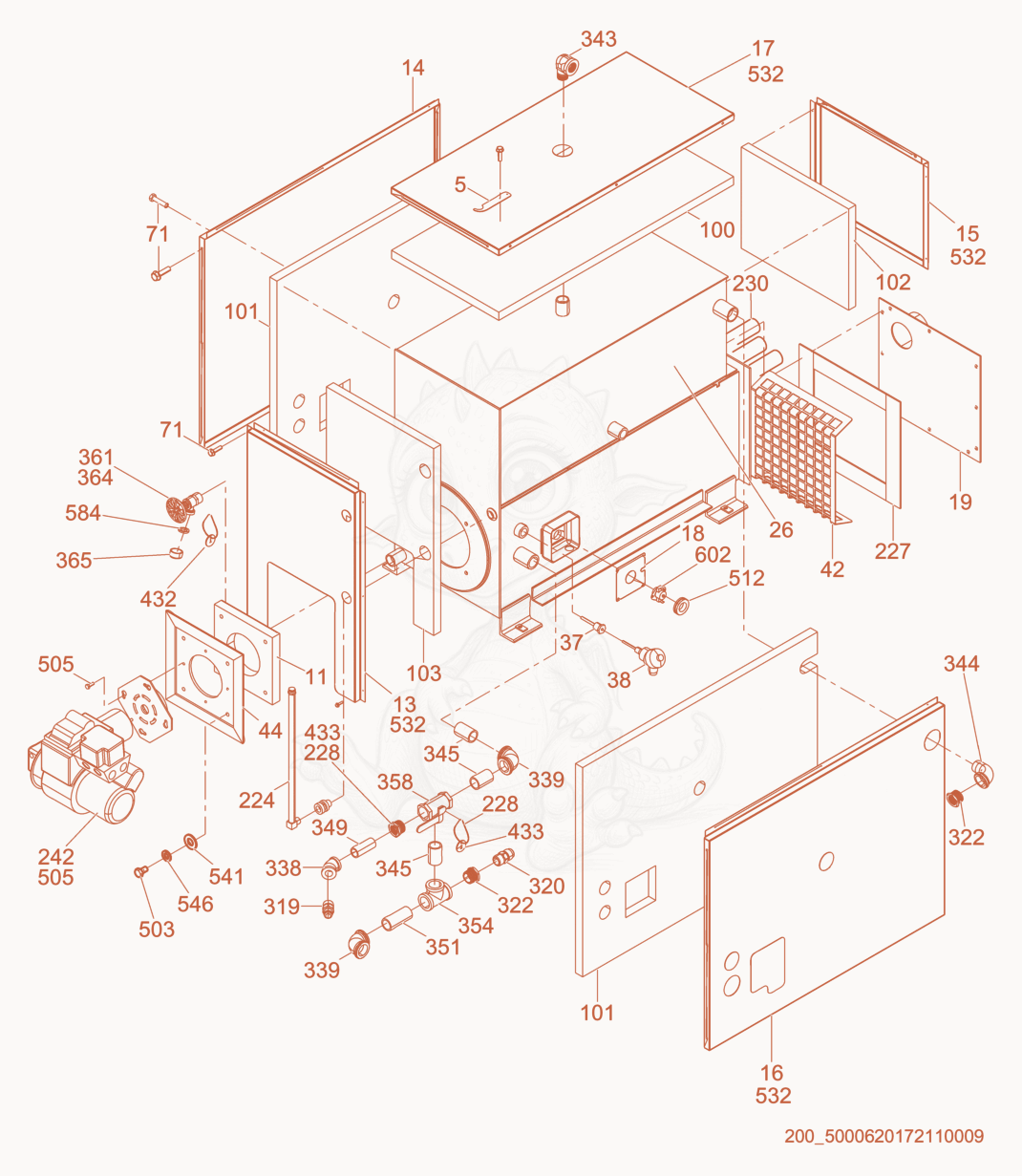

Exploded parts diagram of the Hydronic heater cpl. of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55000167114Not stocked
    Bracket×1
  • 115000167060Not stocked
    Insulator×1
  • 135000167094Not stocked
    Cover×1
  • 145000167097Not stocked
    Cover×1
  • 155000167095Not stocked
    Cover×1
  • 165000167096Not stocked
    Cover×1
  • 175000167093Not stocked
    Cover×1
  • 175000167099Not stocked
    Insulation×1
  • 185000167072Not stocked
    Cover×1
  • 195000167060Not stocked
    Insulator×1
  • 195000169515Not stocked
    Exhaust lid×1
  • 265000169531Not stocked
    Hydronic heater×1
  • 375000166711Not stocked
    Thermowell×1
  • 385000166712Not stocked
    Thermocouple×1
  • 425000177838Not stocked
    Mount×1
  • 445000169551Not stocked
    Mounting plate×1
  • 715000167883Not stocked
    Screw×22
  • 1005000167099Not stocked
    Insulation×1
  • 1015000167098Not stocked
    Insulation×2
  • 1025000167101Not stocked
    Insulation×1
  • 1035000167100Not stocked
    Insulation×1
  • 2245000168831Not stocked
    Sight gauge×1
  • 2275000178466Not stocked
    Ceramic fiber strip×1
  • 2285000167727Not stocked
    Tie wire×2
  • 2305000168163Not stocked
    Turbulator×19
  • 2425200000920Not stocked
    Burner cpl. (Diesel)×1
  • 3195000168372Not stocked
    Adapter×1
  • 3205000168393Not stocked
    Adapter×1
  • 3225000168011Not stocked
    Bushing×3
  • 3385000168498Not stocked
    Elbow×1
  • 3395000168328Not stocked
    Elbow×2
  • 3435000168029Not stocked
    Elbow×1
  • 3445000168403Not stocked
    Elbow fitting×1
  • 3455000168331Not stocked
    Nipple fitting×3
  • 3495000168710Not stocked
    Nipple fitting×1
  • 3515000166712Not stocked
    Thermocouple×1
  • 3515000168712Not stocked
    Nipple fitting×1
  • 3545000168326Not stocked
    Tee-fitting×1
  • 3585000168474Not stocked
    Valve×1
  • 3615000168235Not stocked
    Plug×1
  • 3645000168048Not stocked
    Valve×1
  • 3655000168040Not stocked
    Cap×1
  • 4325000168186Not stocked
    Tag No. 1×1
  • 4335000168187Not stocked
    Tag No. 2×1
  • 5035000167721Not stocked
    Bolt×16
  • 5055000167704Not stocked
    Bolt×4
  • 5125000168477Not stocked
    Grommet×1
  • 5325000167883Not stocked
    Screw×38
  • 5415000167729Not stocked
    Flat washer×4
  • 5465000167733Not stocked
    Lock washer×16
  • 5845000168342Not stocked
    Washer×1
  • 6025000166613Not stocked
    Limit control×1
