E1100 GROUND HEATER

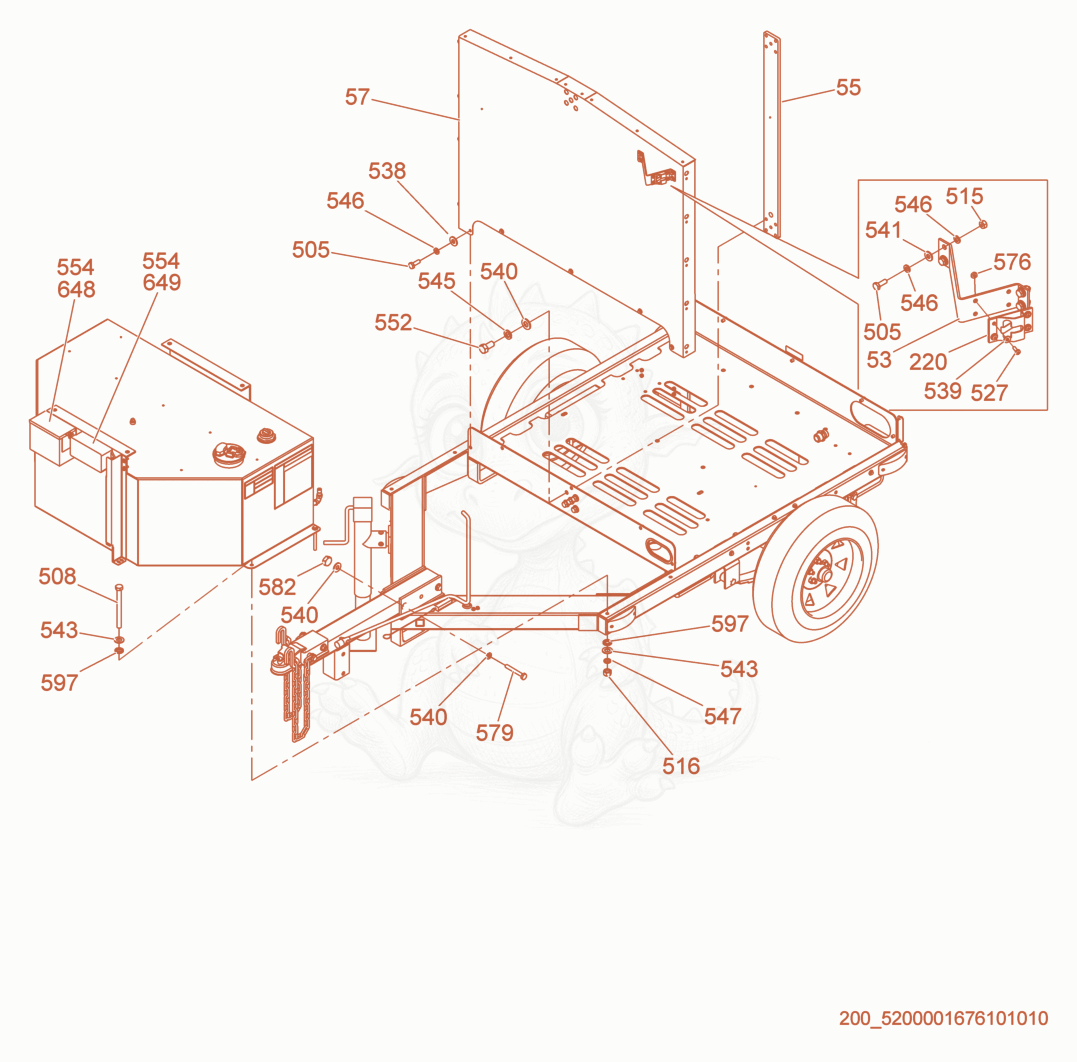

E1100 Fuel Tank Mounting Diagram

Exploded parts diagram of the Fuel Tank Mounting of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 535000179305Not stocked
    Bracket×1
  • 555000179366Not stocked
    Lifting bracket×1
  • 575000179302Not stocked
    Front panel×1
  • 2205000168402Not stocked
    Holder-door×1
  • 5055000167704Not stocked
    Bolt×4
  • 5085000167803Not stocked
    Bolt×4
  • 5155000167690Not stocked
    Nut×4
  • 5165000167691Not stocked
    Nut×4
  • 5275000167898Not stocked
    Screw×1
  • 5385000167806Not stocked
    Fender washer×5
  • 5395000167810Not stocked
    Flat washer×4
  • 5405000167728Not stocked
    Flat washer×5
  • 5405000167728Not stocked
    Flat washer×8
  • 5415000167729Not stocked
    Flat washer×8
  • 5435000167755Not stocked
    Washer-flat×8
  • 5455000167734Not stocked
    Lock washer×5
  • 5465000167733Not stocked
    Lock washer×9
  • 5475000167735Not stocked
    Lock washer×8
  • 5525000167716Not stocked
    Bolt×5
  • 5545000167793Not stocked
    Screw×8
  • 5765000167814Not stocked
    Nut×4
  • 5795000167698Not stocked
    Bolt×4
  • 5825000167792Not stocked
    Nut×4
  • 5975000177344
    $0.09
    WASHER-LOCK J10,INT.STAR ZP - 5000177344×4
  • 6485000166672Not stocked
    Breakaway Kit×1
