E1100 GROUND HEATER

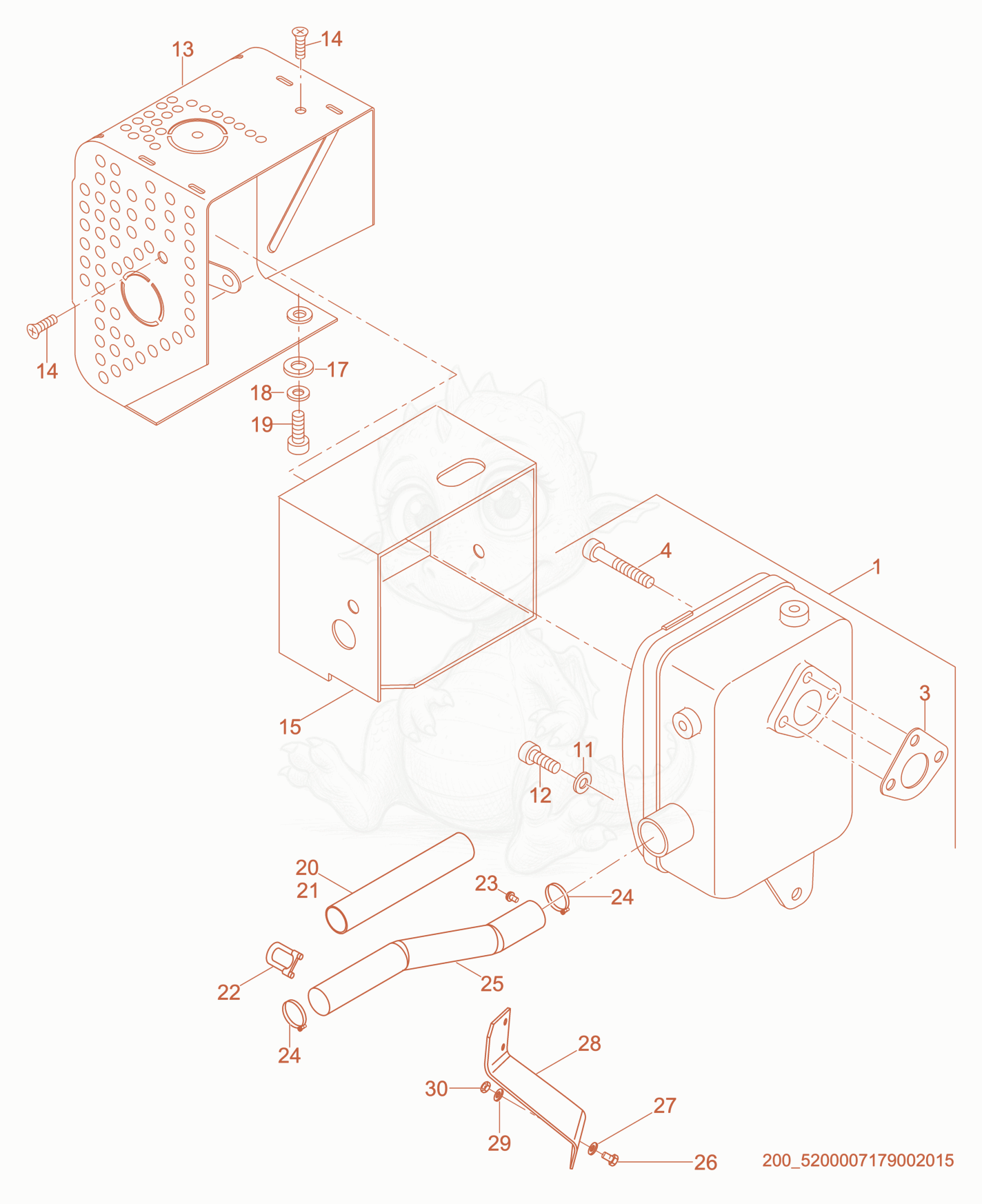

E1100 Muffler cpl. Diagram
- MUFFLER ASSEMBLY - 5000151573×1
- GASKET-MUFFLER - 5000151584×1
- SCREW-ALLEN,M8 X 25 - 5000202457×3
- WASHER 6.4 - 5000107401×1
- SCREW-ALLEN HD,M6X16A3C-8.8 - 5000129009×1
- 135200007481Not stockedMuffler guard×1
- SCREW-M6X12 8.8 A3C - 5000151387×2
- 155200007482Not stockedInsulator×1
- WASHER 6.4 - 5000107401×1
- WASHER-SPRING 6 A3C - 5000151456×1
- SCREW M6 X 16 DIN933,HEX - 5000202338×1
- 205100015101Not stockedWrap×1
- 215100015069Not stockedSleeve×1
- 225100024196Not stockedMuffler clamp×1
- 235000167848Not stockedScrew×1
- CLAMP-HOSE,#20,.81-1.75 - 5000119906×2
- Tube-flex system, exhaust - 5100022683×1
- 265100027012Not stockedBolt×1
- 275100027011Not stockedWasher×1
- 285100027010Not stockedMuffler bracket×1
- 295100027013Not stockedFlat washer×1
- 305100027014Not stockedNut×1
