E1100 GROUND HEATER

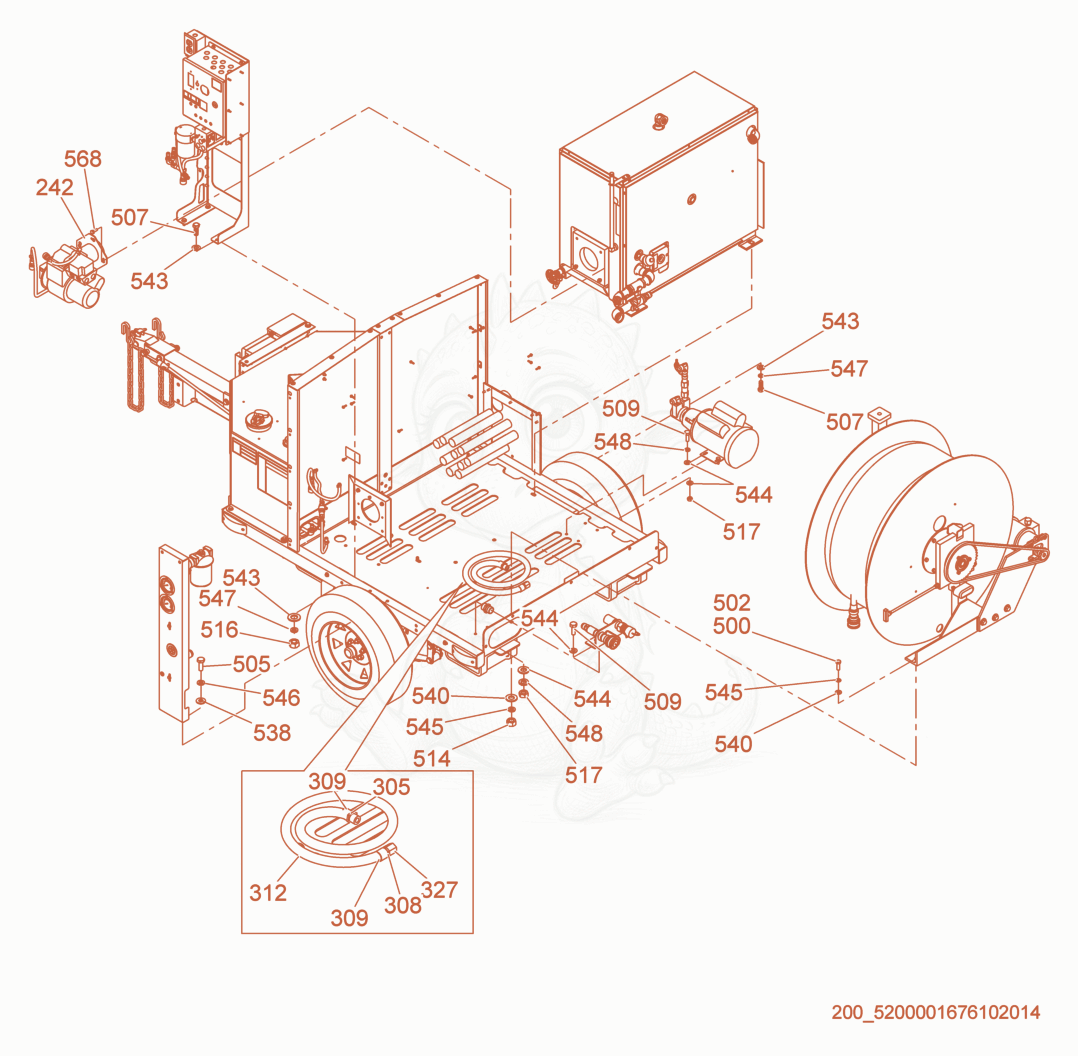

E1100 Mount-Components Diagram
- 2425200000920Not stockedBurner cpl. (Diesel)×1
- HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×1
- HOSE END, 5/8 X 5/8 JIC,BRASS - 5000168376×1
- HOSE FERRULE, 0.975 ID, BRASS - 5000168042×2
- 3125000169435Not stockedHose×1
- 3275000168482Not stockedCap×1
- 5005000167699Not stockedBolt×8
- 5025000167701Not stockedBolt×2
- 5055000167704Not stockedBolt×2
- 5075000167705Not stockedBolt×4
- 5095000167708Not stockedBolt×8
- 5145000167689Not stockedNut×6
- 5165000167691Not stockedNut×4
- 5175000167692Not stockedNut×8
- 5385000167806Not stockedFender washer×2
- 5405000167728Not stockedFlat washer×18
- 5435000167730Not stockedFlat washer×12
- 5445000167731Not stockedFlat washer×12
- 5455000167734Not stockedLock washer×6
- 5465000167733Not stockedLock washer×2
- 5475000167735Not stockedLock washer×4
- 5475000167735Not stockedLock washer×4
- 5485000167736Not stockedLock washer×6
- 5685000167749Not stockedBolt×3
