E1100 GROUND HEATER

E1100 Electrical Equipment/Wiring Diagram

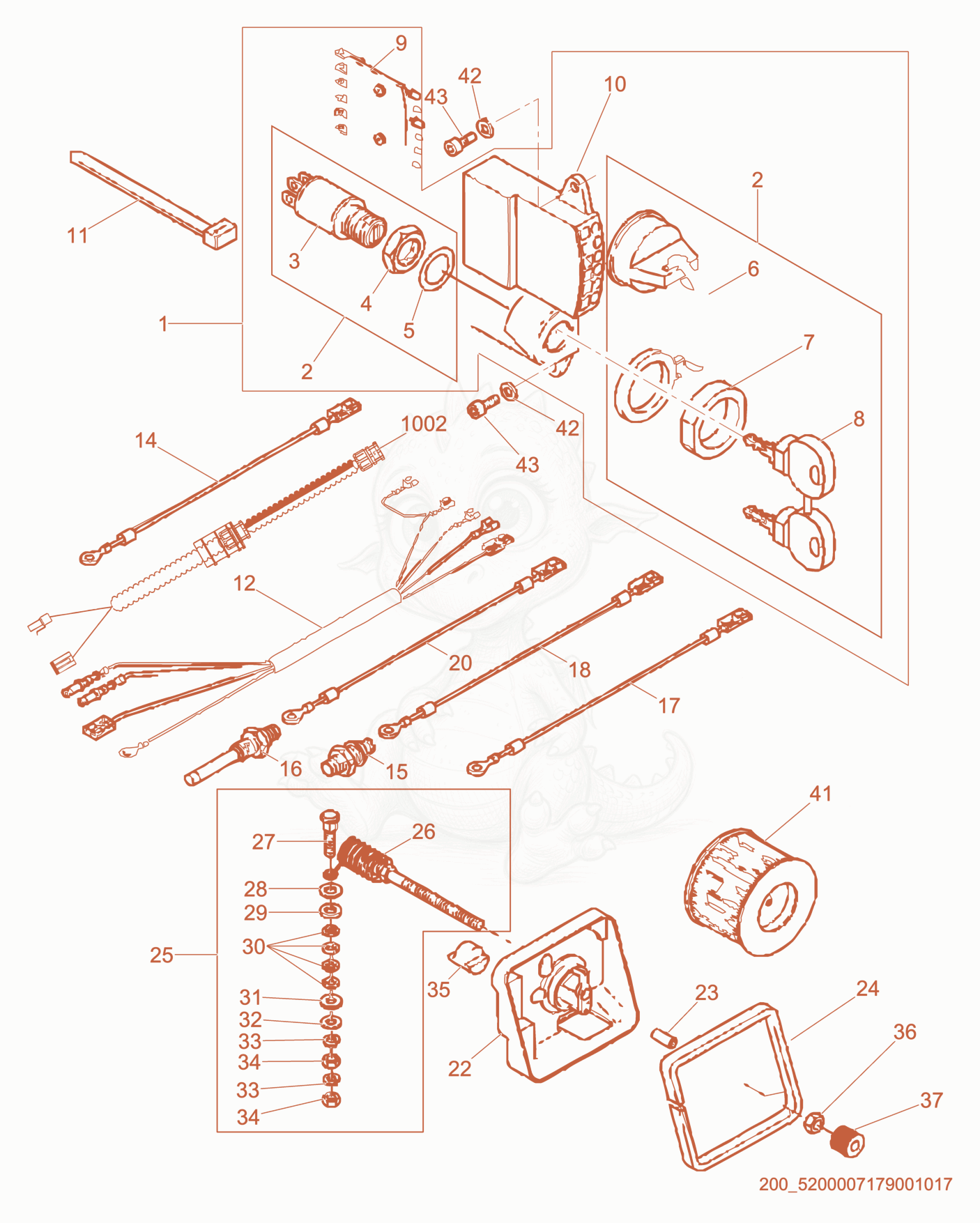

Exploded parts diagram of the Electrical Equipment/Wiring of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200007506Not stocked
    Control box×1
  • 115000150243
    $3.06
    STRAP - 5000150243×2
  • 125200007507Not stocked
    Wiring harness×1
  • 155000128894
    $41.10
    SWITCH-OIL PRESSURE - 5000128894×1
  • 165000107861
    $84.45
    SWITCH-TEMPERATURE - 5000107861×1
  • 215200007508Not stocked
    Air filter housing cpl.×1
  • 235200007509Not stocked
    Bushing spacer×1
  • 245000129013
    $25.00
    Seal - 5000129013×1
  • 255200007510Not stocked
    Glow plug×1
  • 275200007511Not stocked
    Flange bolt×1
  • 285000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×1
  • 295200007512Not stocked
    Disc×1
  • 305200007513Not stocked
    Ring×1
  • 315200007514Not stocked
    Disc×4
  • 325000129517
    $8.06
    WASHER 5.3, A3C - 5000129517×1
  • 335000010709
    $0.37
    WASHER-LOCK,5 - 5000010709×2
  • 345000129020
    $8.06
    NUT M5-8 A3C - 5000129020×2
  • 355000108899
    $14.34
    PLUG - 5000108899×1
  • 365000151323
    $8.06
    NUT-HEX M6 8 A3C - 5000151323×1
  • 375200007515Not stocked
    Fitting×1
  • 415000108903
    $35.62
    FILTER-AIR - 5000108903×1
  • 425000151324
    $8.06
    WASHER-FLAT 6.4 - 5000151324×2
  • 435000129016
    $8.06
    SCREW-ALLEN HD,M6X12-8.8A3C - 5000129016×2
  • 10025100025298Not stocked
    Wiring harness×1
