E1100 GROUND HEATER

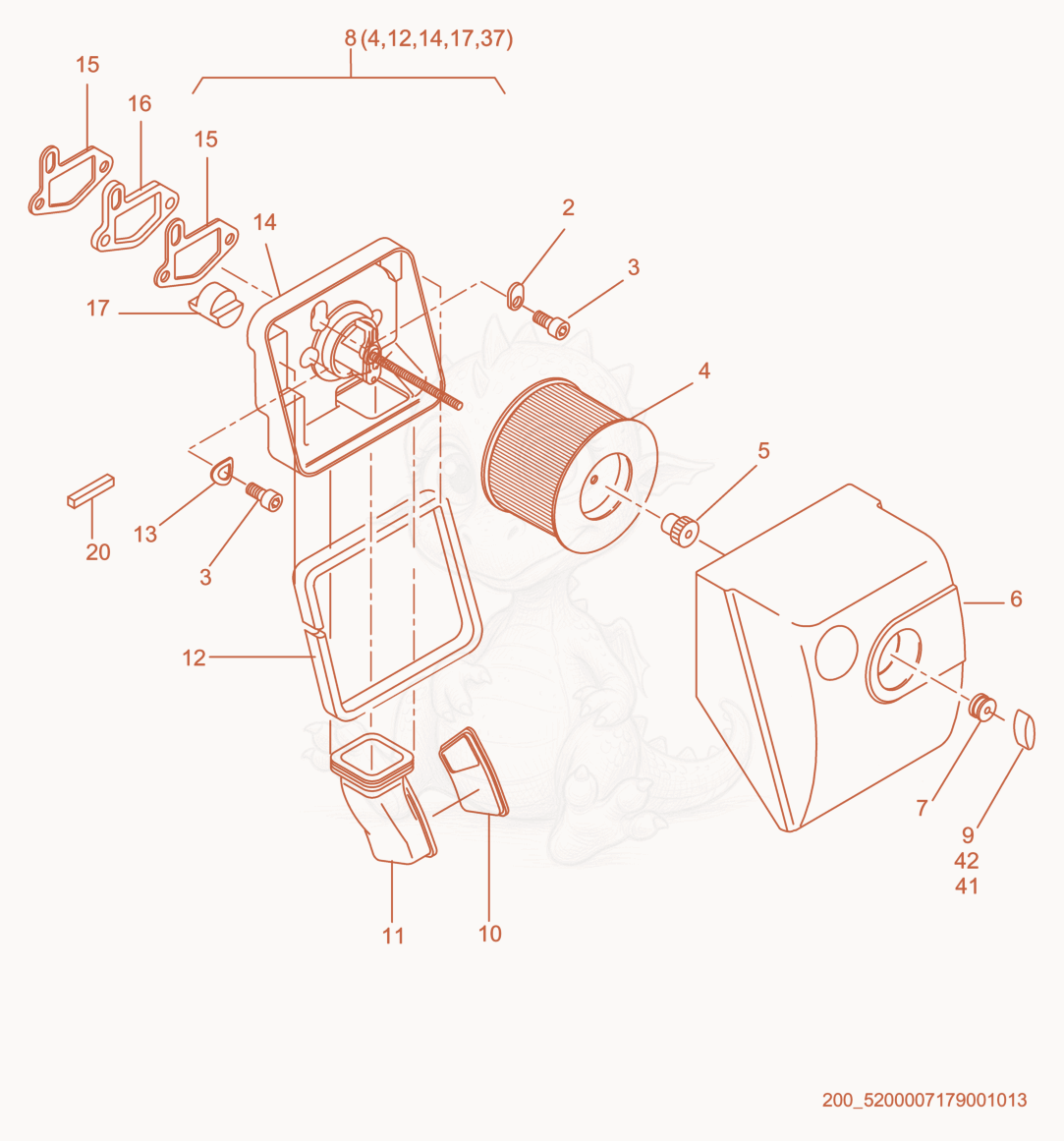

E1100 Air Cleaner cpl. Diagram

Exploded parts diagram of the Air Cleaner cpl. of a Wacker Neuson E1100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000108902
    $8.06
    Washer - 5000108902×1
  • 35000151559
    $8.06
    SCREW-ALLEN M8X25 8.8 - 5000151559×3
  • 45000108903
    $35.62
    FILTER-AIR - 5000108903×1
  • 55000108904
    $8.06
    NUT-KNURLED M6 - 5000108904×1
  • 65000151561
    $182.79
    COVER-FILTER,AIR - 5000151561×1
  • 75000108906
    $6.19
    SLEEVE-RUBBER - 5000108906×1
  • 85000209678
    $189.70
    MOUNT-AIR FILTER - 5000209678×1
  • 95000108907
    $11.94
    NUT-WING M6 - 5000108907×1
  • 105000151565
    $11.81
    COVER-INSERT,RUBBER - 5000151565×1
  • 115000151566
    $74.02
    INSERT-RUBBER - 5000151566×1
  • 125000129013
    $25.00
    Seal - 5000129013×1
  • 135000013601
    $0.12
    WASHER-LOCK A8 - 5000013601×2
  • 155000108897
    $8.06
    GASKET-FILTER AIR - 5000108897×2
  • 165000108898
    $24.90
    FLANGE-INSULATING - 5000108898×1
  • 175000108899
    $14.34
    PLUG - 5000108899×1
  • 415200007459Not stocked
    Shim×1
  • 425200007480Not stocked
    Rivet×1
