ET42

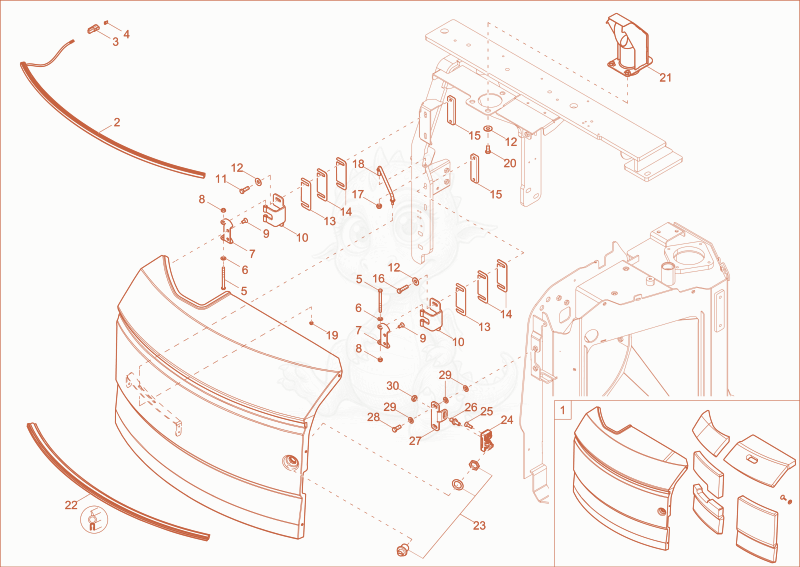

ET42 engine hood Diagram

Exploded parts diagram of the engine hood of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000532159
    $1,992.28
    engine hood E19 CC10 - 1000532159×1
  • 21000427275Not stocked
    lamp×1
  • 31000027445Not stocked
    pin housing×1
  • 41000027449Not stocked
    housing×1
  • 51000085320
    $1.13
    hex screw - 1000085320×2
  • 61000015448Not stocked
    washer×2
  • 71000446187Not stocked
    hinge×2
  • 81000357534Not stocked
    hexagon nut×2
  • 91000015373Not stocked
    countersunk screw×4
  • 101000420635Not stocked
    hinge×2
  • 111000015364Not stocked
    hex screw×2
  • 121000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×7
  • 131000421396Not stocked
    plate×2
  • 141000421395Not stocked
    plate×4
  • 151000422321
    $11.39
    PLATE - 1000422321×2
  • 161000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×2
  • 171000357535Not stocked
    hexagon nut×1
  • 181000283364
    $23.61
    locking bar - 1000283364×1
  • 191000357533Not stocked
    hexagon nut×1
  • 201000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 211000448874Not stocked
    exhaust scoop×1
  • 221000017845Not stocked
    rubber profile×1.05
  • 231000078889
    $62.87
    push button - 1000078889×1
  • 241000369139Not stocked
    lock×1
  • 251000085532
    $1.93
    countersunk screw M8x30 8.8 A2C - 1000085532×2
  • 261000369245Not stocked
    pin×1
  • 271000456790Not stocked
    bracket×1
  • 281000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 291000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 301000170695
    $1.22
    6-point screw M12x1-8 A2C - 1000170695×1
