ET42

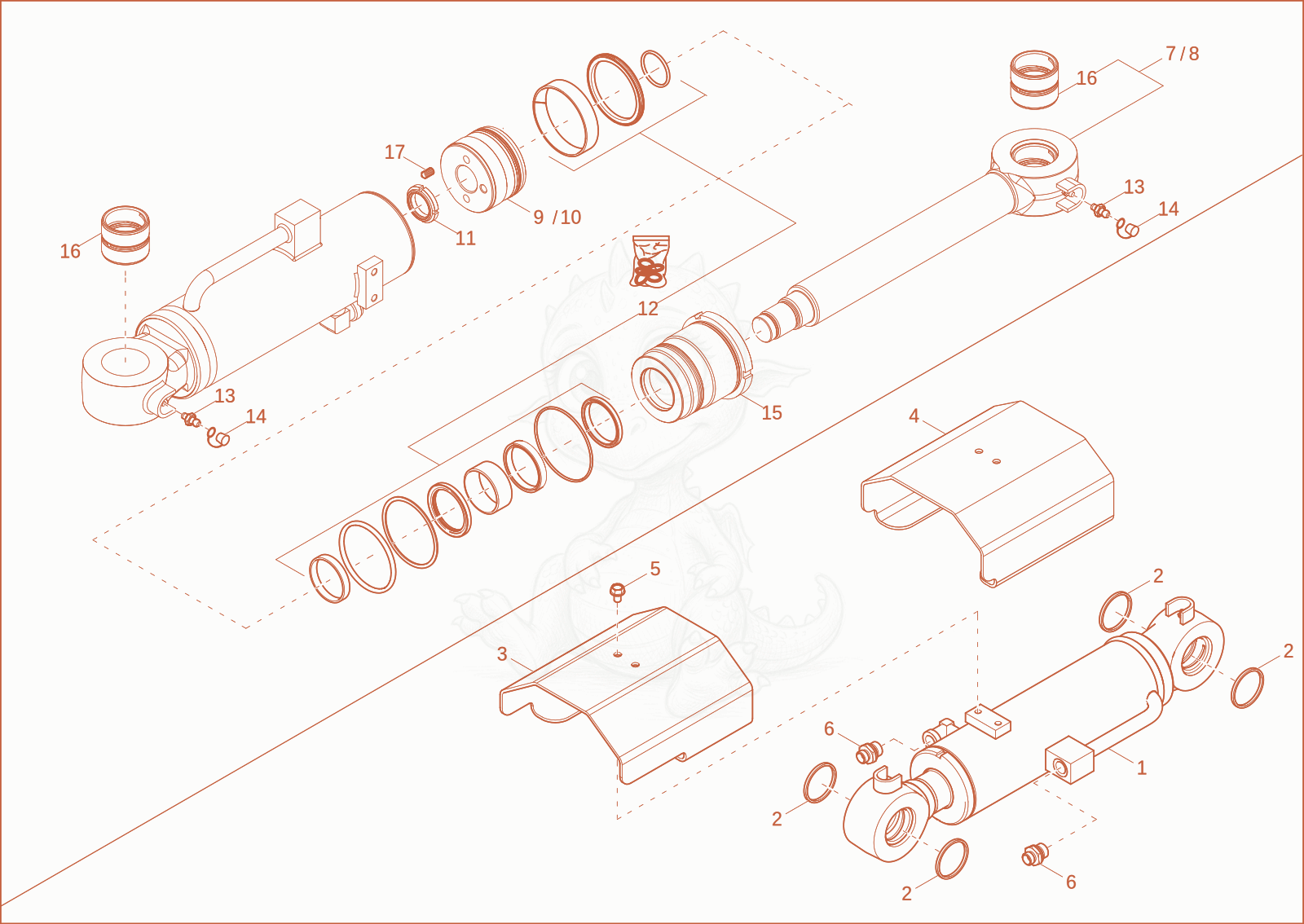

ET42 blade cylinder Diagram

Exploded parts diagram of the blade cylinder of a Wacker Neuson ET42, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458352Not stocked
    blade cylinder×1
  • 21000015707Not stocked
    pin gasket×4
  • 31000448759Not stocked
    protection plate×1
  • 41000448762Not stocked
    protection plate×1
  • 51000333172Not stocked
    screw×2
  • 61000015493Not stocked
    screw joint×2
  • 71000399924Not stocked
    piston rod×1
  • 81000478411Not stocked
    piston rod×1
  • 91000399477
    $103.30
    Piston - 1000399477×1
  • 101000461974
    $103.30
    piston - 1000461974×1
  • 111000399494
    $50.59
    Nut - 1000399494×1
  • 121000399468Not stocked
    seal kit×1
  • 131000015476Not stocked
    grease nipple×2
  • 141000015480Not stocked
    cap grease nipple×2
  • 151000399487Not stocked
    guide bushing×1
  • 161000015619Not stocked
    steel bushing×2
  • 171000015384Not stocked
    thread pin×1
